Description
Aerpro AMMB6 Carplay Android Auto replacement system to suit Mitsubishi Lancer (07-13) Rockford Amp

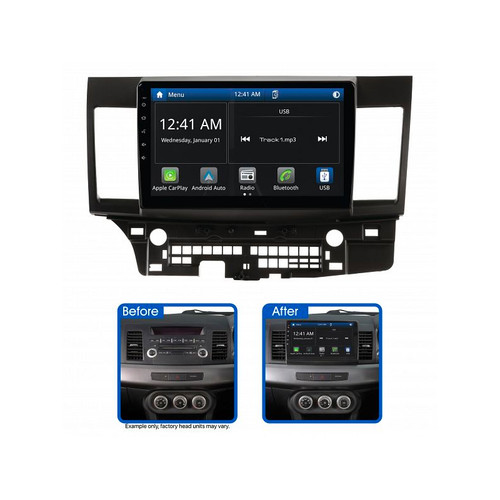

Introducing the Aerpro AMMB6 10" Multimedia Receiver, the perfect upgrade for Mitsubishi Lancer (2007-2013) vehicles with factory Rockford Fosgate amplified systems. This multimedia receiver comes with a large 10" capacitive touchscreen display and features wireless Apple CarPlay and Android Auto that can also be used wired. With built-in Bluetooth, you can enjoy hands-free phone calls and wireless audio streaming, while the rear USB input and AM/FM radio tuner provide additional audio options. The sound quality is exceptional with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, and amplifiers can be added to the system via the 4V/5CH RCA preouts.
The Aerpro AMMB6 is supplied as a complete Head Unit Upgrade Kit that includes all the parts necessary for installation, such as the Black Facia Kit, Steering Wheel Control Interface Harness, SWC Patch Lead, and Camera Retention Adaptor. Additionally, this multimedia receiver retains essential vehicle features such as steering wheel controls, access to the vehicle menu, factory Rockford Fosgate amplified system, and factory reverse camera (if equipped).
For an even better driving experience, you can add the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately) and enjoy seamless on-road and off-road navigation through the head unit display. Remember that Head Unit Upgrade Kits can vary between vehicle models, so make sure to use the Aerpro What Fits Your Car Guide to find the correct parts for your vehicle.
AMMB6 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM10X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Camera Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: Yes (if equipped)
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: Yes
Vehicle Menu: Yes
Other: Access Factory Amp Settings
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits Mitsubishi Lancer (2007-2013) vehicles with factory Rockford Fosgate amplified systems.
Reverse Camera Retention uses the reverse camera input of the head unit.
Mitsubishi Lancer 2007-2013 CJ
Features
To suit Mitsubishi Lancer (2007-2013) vehicles with factory Rockford Fosgate amplified systems
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 10" capacitive touchscreen display
Steering wheel control (including phone button), access to the vehicle menu, factory Rockford Fosgate amplified system and factory reverse camera retention (if equipped)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
