Description

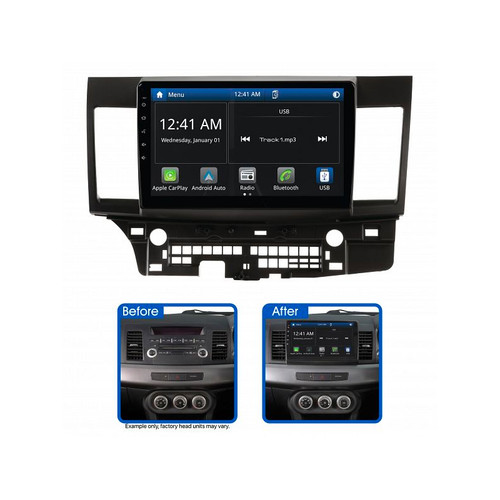

Aerpro AMMB7 Carplay Android Auto replacement system to suit Mitsubishi Lancer (07-13) Rockford Amp
Elevate your driving experience with the Aerpro AMMB7 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto. Specifically designed for Mitsubishi Lancer (2013-2017) vehicles with factory Rockford Fosgate amplified systems, this Multimedia Receiver features a large 10" capacitive touchscreen display and offers seamless integration with your smartphone via wireless or wired Apple CarPlay and Android Auto. You can also enjoy built-in Bluetooth for hands-free phone calls and wireless audio streaming, as well as an AM/FM radio tuner, and rear USB input.
With 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities, the sound quality of the Aerpro AMMB7 is unbeatable. You can also easily add amplifiers to the system via the 4V/5CH RCA preouts. This complete Head Unit Upgrade Kit includes all the necessary parts for installation and retains essential vehicle features, including steering wheel controls, factory Rockford Fosgate amplified system, USB input, and factory reverse camera (if equipped).
For an even more seamless driving experience, add the optional Aerpro AMHXD3 On-Road/Off-Road Navigation Module (sold separately) to your head unit and enjoy on-road and off-road navigation through the head unit display. Please use the Aerpro What Fits Your Car Guide to find the correct parts for your vehicle model. Note that the kit includes a Camera Retention Adaptor and USB Retention Adaptor, and Reverse Camera Retention uses the reverse camera input of the head unit.
AMMB7 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM10X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Camera Retention Adaptor
USB Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: Yes (if equipped)
AUX Input: N/A
USB Input: Yes (if equipped)
Parking Tones: N/A
Factory Amplifier: Yes
Vehicle Menu: N/A
Other: Access Factory Amp Settings
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits Mitsubishi Lancer (2013-2017) vehicles with factory Rockford Fosgate amplified systems.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
Mitsubishi Lancer 2013 - 2017
Features
To suit Mitsubishi Lancer (2013-2017) vehicles with factory Rockford Fosgate amplified systems
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 10" capacitive touchscreen display
Steering wheel control (including phone button), factory Rockford Fosgate amplified system, USB input and factory reverse camera retention (if equipped)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
