Description
Aerpro AMTO41 Carplay Android Auto replacement system to suit Toyota Landcruiser 200 Series (07-11) No SWC

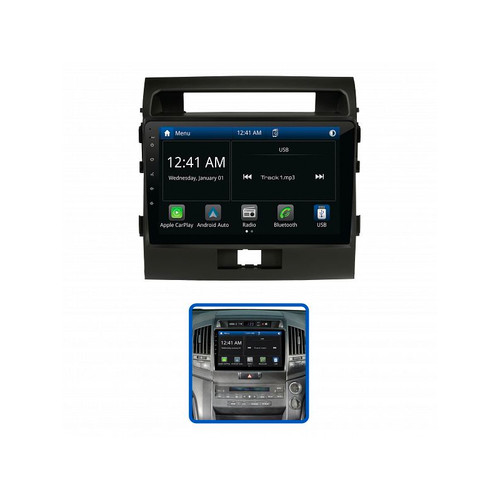

Upgrade your Toyota Landcruiser 200 Series GXL or VX (2007-2011) vehicle without steering wheel controls with the Aerpro AMTO41 10" Multimedia Receiver. With a large capacitive touchscreen display, this receiver features wireless or wired Apple CarPlay and Android Auto, built-in Bluetooth for hands-free phone calls and wireless audio streaming, rear USB input, and AM/FM radio tuner. Enjoy superb sound quality with a 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities. You can also add amplifiers via the 4V/5CH RCA preouts. This complete head unit upgrade kit includes all necessary parts for installation and retains important vehicle features such as the factory reverse camera (if equipped, model dependent).
To enhance your navigation experience, add the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately), which provides seamless on-road and off-road navigation through the head unit display.
Please note that Head Unit Upgrade Kits may vary between vehicle models, so be sure to use the Aerpro What Fits Your Car Guide to find the correct parts. The Aerpro AMTO41 10" Multimedia Receiver does not suit SAHARA models and requires the park brake wire to be connected for Apple CarPlay and Android Auto to function. Additionally, the reverse camera retention only suits selected vehicle models, and the Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately). This head unit kit includes the AM10X Multimedia Receiver, Matte Black Facia Kit, Harness, and Camera Retention Adaptor.
AMTO41 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM10X Multimedia Receiver
Matte Black Facia Kit
Harness
Camera Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: N/A
Factory Reverse Camera: Yes (if equipped, model dependent)
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits vehicles without steering wheel controls.
Does not suit SAHARA models.
Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately).
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Reverse Camera Retention uses the reverse camera input of the head unit. Reverse camera retention only suits selected vehicle models.
Toyota Landcruiser 2007-2011 200 Series
Features
To suit Toyota Landcruiser 200 Series GXL, VX (2007-2011) vehicles without steering wheel controls
Includes all the parts required to complete the installation
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 10" capacitive touchscreen display
Factory reverse camera retention (if equipped, model dependent)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
