Aerpro AMTO42 Carplay Android Auto replacement system to suit Toyota Landcruiser 200 Series (21-21) No SWC

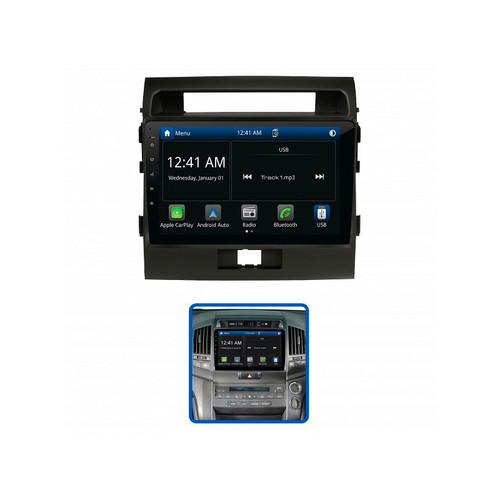

The Aerpro AMTO42 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto is designed for Toyota Landcruiser 200 Series GX (2012-2021) vehicles without steering wheel controls. It comes with a large 10" capacitive touchscreen display that enables Apple CarPlay and Android Auto to be used wirelessly or through a cable connection, as well as built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input, and AM/FM radio tuner. The sound quality is excellent with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, and the system can accommodate amplifiers via the 4V/5CH RCA preouts. The Aerpro AMTO42 is a complete Head Unit Upgrade Kit that includes all the parts necessary for installation and retains important vehicle features, such as USB input and factory reverse camera (if equipped, model dependent).
With the optional Aerpro AMHXD3 On-Road/Off-Road Navigation Module (sold separately), you can enjoy seamless on-road and off-road navigation through the head unit display.
Please note that Head Unit Upgrade Kits may differ depending on the vehicle model, so please use the Aerpro What Fits Your Car Guide to locate the correct components. This unit is suitable for vehicles without steering wheel controls. You can manually program the Aerpro RFASWC Universal Steering Wheel Control into this head unit (sold separately). The factory-fitted reverse camera can be retained, and the reverse camera retention uses the reverse camera input of the head unit. The USB input retention uses the USB input on the back of the head unit. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function correctly.
The kit contains the following components: AM10X Multimedia Receiver, Matte Black Facia Kit, Harness, Camera Retention Adaptor, Antenna Adaptor, and USB Retention Adaptor.
AMTO42 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM10X Multimedia Receiver
Matte Black Facia Kit
Harness
Camera Retention Adaptor
Antenna Adaptor
USB Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: N/A
Factory Reverse Camera: Yes (model dependent, factory reverse camera only)
AUX Input: N/A
USB Input: Yes (model dependent)
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits vehicles without steering wheel controls.
Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately).
Factory fitted reverse camera can be retained. Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Toyota Landcruiser 2012-2021 200 Series (GX only)
Features
To suit Toyota Landcruiser 200 Series GX (2011-2021) vehicles without steering wheel controls
Includes all the parts required to complete the installation
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 10" capacitive touchscreen display
USB input and factory reverse camera retention (if equipped, model dependent).
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
