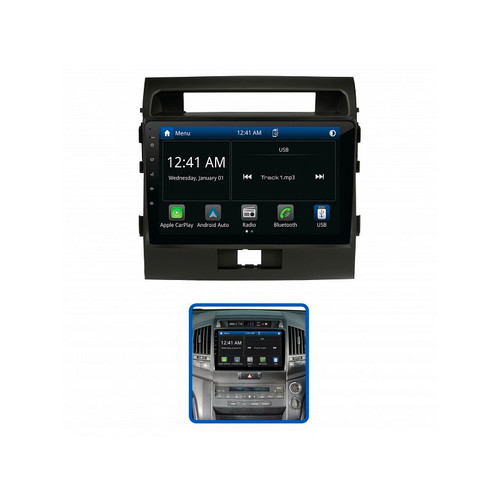

Aerpro AMTO18 Carplay Android Auto replacement system to suit Toyota Landcruiser 200 Series (12-16)
The Aerpro AMTO18 10" Multimedia Receiver with Wireless Apple CarPlay and Android Auto is a perfect fit for Toyota Landcruiser 200 Series GXL, VX, Altitude (2012-2016) vehicles with steering wheel controls. It boasts a large 10" capacitive touchscreen display, built-in Bluetooth for hands-free phone calls and wireless audio streaming, and an AM/FM radio tuner. You can use Apple CarPlay and Android Auto, either wirelessly or wired. The sound quality is excellent, with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, and you can add amplifiers to the system via the 4V/5CH RCA preouts. The Aerpro AMTO18 comes with all the necessary parts to complete the installation and retains important vehicle features like steering wheel controls, USB input*, AUX input* and the factory reverse camera* (*if equipped, model dependant).
You can also add the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately) to experience seamless on-road and off-road navigation through the head unit display.
Please note that Head Unit Upgrade Kits can vary between vehicle models, so use the Aerpro What Fits Your Car Guide to find the correct parts. Reverse Camera, USB Input & AUX Input retention are model dependent, and Reverse Camera Retention uses the reverse camera input of the head unit. USB Input Retention uses the USB input on the rear of the head unit, and AUX Input Retention uses the RCA AUX input on the rear of the head unit.
This head unit kit includes the AM10X Multimedia Receiver, Matte Black Facia Kit, Steering Wheel Control Interface Harness, SWC Patch Lead, Antenna Adaptor, Camera Retention Adaptor, and USB Retention Adaptor. Please note that this kit does not suit SAHARA models.
AMTO18 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM10X Multimedia Receiver
Matte Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Camera Retention Adaptor
USB Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: Yes (if equipped, model dependant)
AUX Input: Yes (if equipped, model dependant)
USB Input: Yes (if equipped, model dependant)
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: N/A
Other: N/A
AM10X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 10"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Does not suit SAHARA models.
Reverse Camera, USB Input & AUX Input retention are model dependant.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
AUX Input Retention uses the RCA AUX input on the rear of the head unit.
Toyota Landcruiser 2012-2015 200 Series
Features
To suit Toyota Landcruiser 200 Series GXL, VX, Altitude (2012-2016) vehicles with steering wheel controls
Includes all the parts required to complete the installation
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 10" capacitive touchscreen display
Steering wheel control, USB input*, AUX input* and factory reverse camera* retention (*if equipped, model dependant).
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
