Description

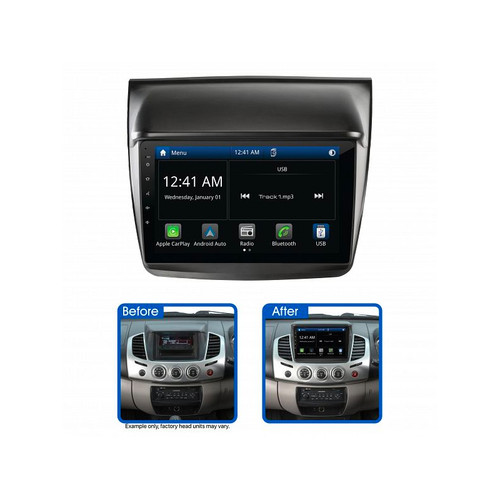

Aerpro AMMB2 Carplay Android Auto replacement system to suit Mitsubishi Triton GLR GLX GLXR (09-11) Challenger (09-11)
Introducing the Aerpro AMMB2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto - perfect for Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011) vehicles without factory amplification and with the Mitsubishi Multi Communication System MMCS. This complete Head Unit Upgrade Kit includes everything you need to install the receiver and retain important features such as steering wheel controls, factory AUX input and factory reverse camera (if equipped).
The 9" capacitive touchscreen display offers easy access to Apple CarPlay and Android Auto, which can be used wired or wirelessly. You can also enjoy built-in Bluetooth for hands-free phone calls and wireless audio streaming, as well as an AM/FM radio tuner and rear USB input. The sound quality is exceptional, with 40Wx4 max output, 8 band graphic EQ and time alignment capabilities, and the 4V/5CH RCA preouts allow for amplifier addition to the system.
For seamless on-road and off-road navigation, you can add the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately), while the Hema Maps image and Hema Maps Ready features enhance your overall navigation experience.
It's important to note that Head Unit Upgrade Kits can vary between vehicle models, so make sure to use the Aerpro What Fits Your Car Guide to find the correct parts. The Aerpro AMMB2 is designed for non-amplified Mitsubishi Triton and Challenger models with the Mitsubishi Multi Communication System MMCS only. The reverse camera retention uses the reverse camera input of the head unit, and the AUX input retention uses the RCA AUX input on the rear of the head unit. Additionally, the park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. The kit includes the AM9X Multimedia Receiver, Black Facia Kit, Steering Wheel Control Interface Harness, SWC Patch Lead, and Camera Retention Adaptor.
AMMB2 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Camera Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: Yes (if equipped)
AUX Input: Yes (if equipped)
USB Input: No
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: N/A
Other: PTT Function (manually program)
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011) vehicles (non amplified models with the Mitsubishi Multi Communication System MMCS only).
Reverse Camera Retention uses the reverse camera input of the head unit.
AUX Input Retention uses the RCA AUX input on the rear of the head unit.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Mitsubishi Challenger 2009 - 2013 PB
Mitsubishi Triton 2009 - 2014 MN [GL-R, GLX]
Mitsubishi Triton 2009-2012 MN [GLX-R]
Features
To suit Mitsubishi Triton MN GL-R, GLX, GLX-R (2009-2011) and Mitsubishi Challenger PB (2009-2011) vehicles (non amplified models with the Mitsubishi Multi Communication System MMCS only)
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control (including phone button), factory AUX input and factory reverse camera retention (if equipped)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
