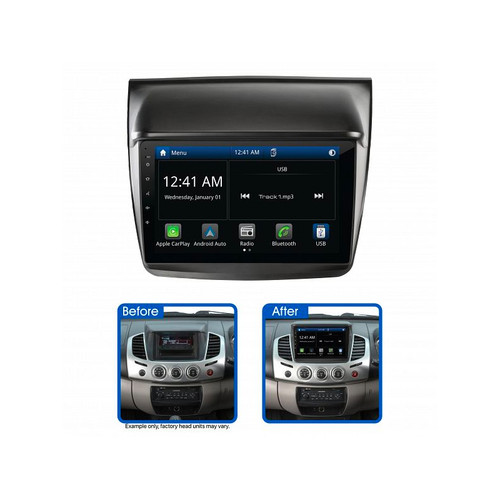

Aerpro AMMB3 Carplay Android Auto replacement system to suit Mitsubishi Triton GLXR (12-14) Challenger (12-13)
Introducing the Aerpro AMMB3 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto, the perfect fit for Mitsubishi Triton MN GLX-R (2012-2014) and Mitsubishi Challenger PB (2012-2013) vehicles with W776 factory units. This Multimedia Receiver features a large 9" capacitive touchscreen display, wireless and wired Apple CarPlay and Android Auto, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input, and an AM/FM radio tuner. Sound quality is top-notch with 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities. Amplifiers can be added to the system via the 4V/5CH RCA preouts. The Aerpro AMMB3 is supplied as a complete Head Unit Upgrade Kit, including all the parts required to complete the installation while retaining important vehicle features such as steering wheel controls and access to the vehicle menu.
Take your driving experience to the next level with the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately), providing seamless on-road and off-road navigation through the head unit display.
It's important to note that Head Unit Upgrade Kits can vary between vehicle models, so please use the Aerpro What Fits Your Car Guide to find the correct parts. This multimedia receiver only suits vehicles with W776 factory units, and to retain the factory 6 button red display, a relocation panel is required (sold separately). For Apple CarPlay and Android Auto to function, this head unit requires the park brake wire to be connected to the park brake.
The Aerpro AMMB3 kit includes the following:
- AM9X Multimedia Receiver
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Plastic Pocket
- Head Unit Removal Keys
AMMB3 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Plastic Pocket
Head Unit Removal Keys
Vehicle Feature Retention:
Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: N/A
AUX Input: N/A
USB Input: No
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: Yes
Other: PTT Function (manually program)
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits vehicles with W776 factory units only.
To retain the factory 6 button red display a relocation panel is required (sold separately):
FP8013TR - To Suit Triton
FP8013CR - To Suit Challenger
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Mitsubishi Challenger 2009 - 2013 PB
Mitsubishi Triton 2012-2014 MN [GLX-R]
Features
To suit Mitsubishi Triton MN GLX-R (2012-2014) and Mitsubishi Challenger PB (2012-2013) vehicles (models with W776 factory units only)
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control (including phone button) and access to the vehicle menu retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
