Description
Aerpro AMMZ20 Carplay Android Auto replacement system to suit Mazda CX7 (09-12) Non Amp

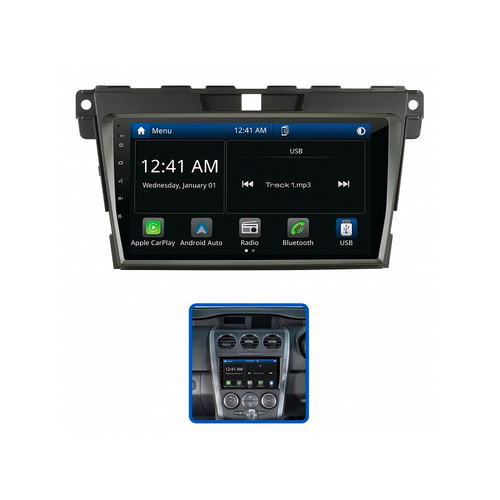

Introducing the Aerpro AMMZ20 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto designed specifically for Mazda CX7 Series 2 (2009-2012) non-amplified vehicles. The large 9" capacitive touchscreen display allows easy access to the features, including wireless or wired Apple CarPlay and Android Auto, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input, and an AM/FM radio tuner. With a max output of 40Wx4, 8 band graphic EQ, and time alignment capabilities, the sound quality is top-notch. Amplifiers can be added via the 4V/5CH RCA preouts. The Aerpro AMMZ20 comes as a complete Head Unit Upgrade Kit and includes all the parts necessary for installation. It retains essential vehicle features such as steering wheel controls and access to vehicle settings.
For those who want to experience seamless on-road and off-road navigation, the Aerpro AMHZD3 On-Road/Off-Road Navigation Module can be added (sold separately).
Please note that Head Unit Upgrade Kits can vary between vehicle models. Be sure to check the Aerpro What Fits Your Car Guide for the correct parts. The AMMZ20 suits non-amplified vehicles only, and the phone button is not supported. The kit includes the AM9X Multimedia Receiver, Matte Black Facia Kit, Steering Wheel Control Interface Harness, SWC Patch Lead, and Antenna Adaptor.
AMMZ20 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Matte Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes (Phone button not supported)
Factory Reverse Camera: N/A
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: Yes
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits non-amplified vehicles only.
Phone button not supported.
Mazda CX7 2009-2012 ER Series 2
Features
To suit Mazda CX7 Series 2 (2009-2012) non-amplified vehicles
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control and access to vehicle menu retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
