Description
Aerpro AMMZ4 Carplay Android Auto replacement system to suit Mazda 3 (09-13) Non Amp

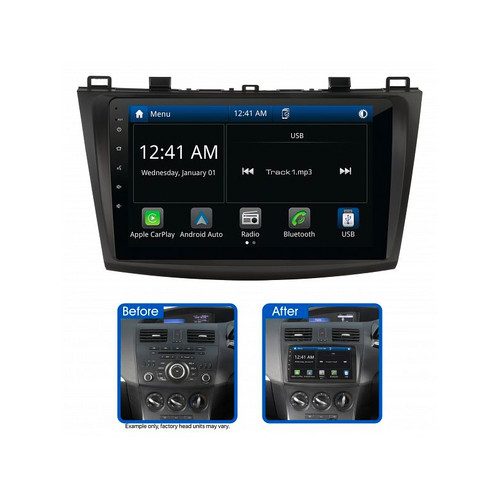

Introducing the Aerpro AMMZ4 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto, designed specifically for Mazda 3 BL (2009-2013) non-amplified vehicles. With its large 9" capacitive touchscreen display, this Multimedia Receiver allows you to enjoy wireless or wired Apple CarPlay and Android Auto, built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input, and an AM/FM radio tuner. Experience superb sound quality with a maximum output of 40Wx4, an 8 band graphic EQ, and time alignment capabilities. You can even add amplifiers to the system via the 4V/5CH RCA preouts.
The Aerpro AMMZ4 is supplied as a complete Head Unit Upgrade Kit, which includes all the parts required for installation and retains important vehicle features such as steering wheel controls and access to the vehicle menu. Additionally, you can enhance your on-road and off-road navigation experience by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately), which seamlessly integrates with the head unit display.
Important Information:
Please note that Head Unit Upgrade Kits can vary between vehicle models. Therefore, we recommend using the Aerpro What Fits Your Car Guide to find the correct parts. This head unit is only compatible with factory non-amplified vehicles and does not support the phone button on steering wheel controls. The Aerpro AMMZ4 comes as a kit which includes:
- AM9X Multimedia Receiver
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
AMMZ4 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes (excluding phone button)
Factory Reverse Camera: N/A
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: Yes
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits factory non-amplified vehicles.
Does not support phone button steering wheel controls.
Mazda 3 (Axela) 2009-2013 BL
Features
To suit Mazda 3 BL (2009-2013) non-amplified vehicles
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control (excluding phone button) and access to the vehicle menu retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
