Description

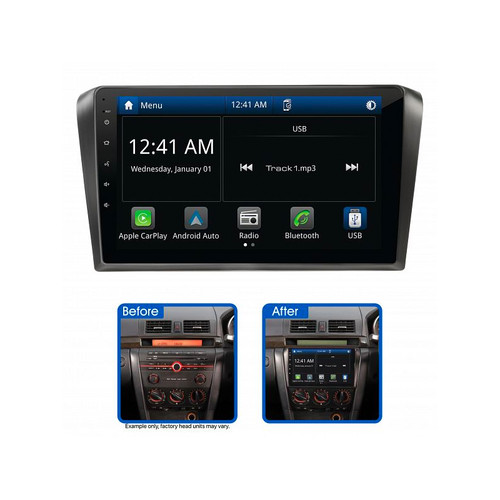

Aerpro AMMZ6 Carplay Android Auto replacement system to suit Mazda 3 (04-09) Non Amp
Introducing the Aerpro AMMZ6 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto, designed specifically for Mazda 3 BK (2004-2009) non-amplified vehicles. This Multimedia Receiver boasts a large 9" capacitive touchscreen display with Apple CarPlay and Android Auto, which can be used wirelessly or wired. Additionally, it features built-in Bluetooth for hands-free phone calls and wireless audio streaming, rear USB input, and an AM/FM radio tuner for a complete entertainment experience. With a 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities, the sound quality is nothing short of superb. Amplifiers can also be added to the system via the 4V/5CH RCA preouts. The Aerpro AMMZ6 is supplied as a complete Head Unit Upgrade Kit and includes all the parts required for installation while retaining essential vehicle features such as steering wheel controls.
For seamless on-road and off-road navigation, consider adding the optional Aerpro AMHXD3 On-Road/Off-Road Navigation Module (sold separately), which displays directions and maps on the head unit display.
Please note that Head Unit Upgrade Kits can vary between vehicle models, so please use the Aerpro What Fits Your Car Guide to find the correct parts. The AMMZ6 is specifically designed for non-amplified vehicles. The kit includes the AM9X Multimedia Receiver, Silver Facia Kit, Steering Wheel Control Interface Harness, and SWC Patch Lead.
AMMZ6 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Silver Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: N/A
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: N/A
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits factory non-amplified vehicles.
Mazda 3 (Axela) 2004-2009 BK
Features
To suit Mazda 3 BK (2004-2009) non-amplified vehicle
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
