Description
Aerpro AMSU2 Carplay Android Auto replacement system to suit Subaru Forester (13-14) Impreza (12-14) XV(12-15) With 6.1 Screen

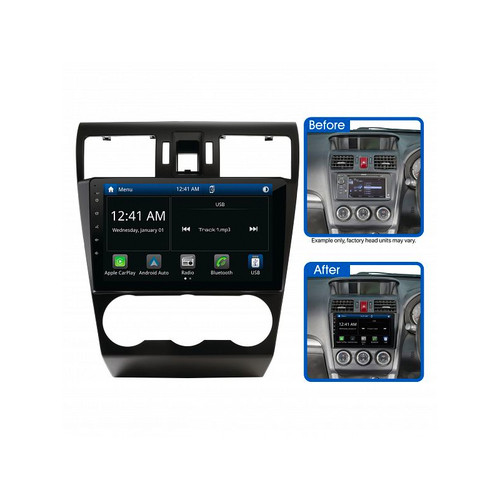

Introducing the Aerpro AMSU2 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto, designed specifically for Subaru Forester SJ (2013-2014), Impreza GP, GJ (2012-2014), and XV (2012-2015) vehicles equipped with a factory 6.1" touchscreen. The large 9" capacitive touchscreen display provides a seamless user experience and features wireless and wired Apple CarPlay and Android Auto, built-in Bluetooth for hands-free phone calls and wireless audio streaming, rear USB input, and AM/FM radio tuner.
Sound quality is top-notch with a maximum output of 40Wx4, an 8-band graphic EQ, and time alignment capabilities. Amplifiers can be added to the system via the 4V/5CH RCA preouts. The Aerpro AMSU2 is supplied as a complete Head Unit Upgrade Kit and includes all the necessary parts to complete the installation while retaining important vehicle features such as steering wheel controls, USB input, AUX input, and the factory reverse camera (if equipped).
Take your navigation to the next level with the optional Aerpro AMHXD3 On-Road/Off-Road Navigation Module (sold separately) for seamless on-road and off-road navigation through the head unit display.
Important Information:
Please refer to the Aerpro What Fits Your Car Guide to ensure compatibility with your vehicle model as Head Unit Upgrade Kits may vary. This model is designed for vehicles equipped with a factory 6.1" touchscreen (Fujitsu 10 Denso head unit). For vehicles without a factory 6.1" touchscreen (Clarion head unit), please use kit AMSU1. The head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function. Reverse Camera Retention uses the reverse camera input of the head unit. USB Input Retention uses the USB input on the rear of the head unit. AUX Input Retention uses the RCA AUX input on the rear of the head unit.
This head unit is sold as a kit which includes:
- AM9X Multimedia Receiver
- Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
- USB Retention Adaptor
AMSU2 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Camera Retention Adaptor
USB Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: Yes (if equipped)
AUX Input: Yes (if equipped)
USB Input: Yes (if equipped)
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
This model suits vehicles with a factory 6.1" factory touchscreen (Fujitsu 10 Denso head unit). For vehicles without a factory 6.1" touchscreen (Clarion head unit) please use kit AMSU1.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
AUX Input Retention uses the RCA AUX input on the rear of the head unit.
Subaru Forester 2013-2014 SJ
Subaru Impreza 2012-2014 GP, GJ
Subaru XV 2012-2015
Features
To suit Subaru Forester SJ (2013-2014), Impreza GP, GJ (2012-2014) and XV (2012-2015) vehicles with a factory 6.1" touchscreen
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control (including phone button), USB input, AUX input and factory reverse camera retention (if equipped)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
