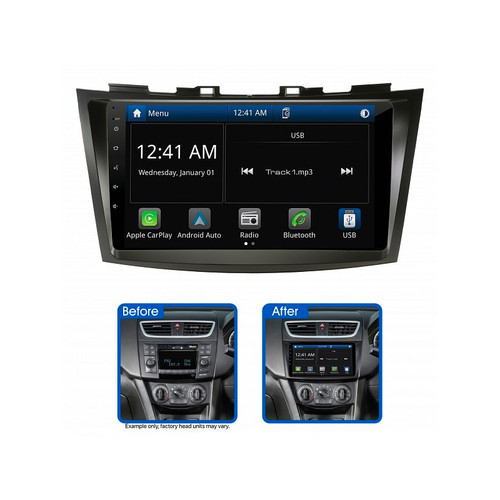

Aerpro AMSZ2 Carplay Android Auto replacement system to suit Suzuki Swift (11-17) No SWC
The Aerpro AMSZ2 9" Multimedia Receiver is designed for Suzuki Swift (2011-2017) vehicles without steering wheel controls. This all-in-one upgrade kit includes a large 9" capacitive touchscreen display that offers wireless and wired Apple CarPlay and Android Auto capabilities, built-in Bluetooth for hands-free phone calls and wireless audio streaming, rear USB input, and an AM/FM radio tuner. With a maximum output of 40Wx4, 8 band graphic EQ, and time alignment capabilities, you can expect superb sound quality. You can even add amplifiers to the system via the 4V/5CH RCA preouts. The Aerpro AMSZ2 retains important vehicle features, including the USB input, and is supplied as a complete Head Unit Upgrade Kit.
Additionally, you can experience seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).
It's essential to note that Head Unit Upgrade Kits can differ between vehicle models, so please use the Aerpro What Fits Your Car Guide to find the correct parts. Also, modifications must be made to the dash for installation. The park brake wire must be connected to the park brake for Apple CarPlay and Android Auto to function. USB Input Retention uses the USB input on the rear of the head unit. The Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately).
The complete kit includes the AM9X Multimedia Receiver, Matte Black Facia Kit, Harness, Antenna Adaptor, and USB Retention Adaptor.
AMSZ2 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Matte Black Facia Kit
Harness
Antenna Adaptor
USB Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: N/A
Factory Reverse Camera: N/A
AUX Input: N/A
USB Input: Yes (if equipped)
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Please be aware modifications must be made to the dash for installation.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
USB Input Retention uses the USB input on the rear of the head unit.
Aerpro RFASWC Universal Steering Wheel Control can be manually programmed into this head unit (sold separately).
Suzuki Swift 2011-2017
Features
To suit Suzuki Swift (2011-2017) vehicles (models without steering wheel controls)
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
USB Input retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
