Description
Aerpro AMSZ6 Carplay Android Auto replacement system to suit Suzuki Swift (17-on)

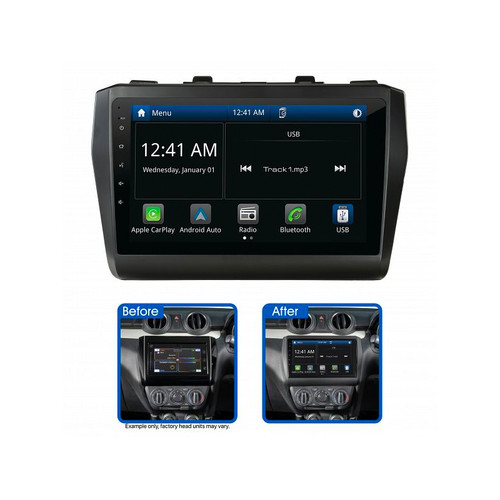

Introducing the Aerpro AMSZ6 9" Multimedia Receiver, designed specifically for Suzuki Swift vehicles from 2017 onwards. With a large 9" capacitive touchscreen display, this Multimedia Receiver features wireless Apple CarPlay and Android Auto, which can be used both wirelessly or through a wired connection. Built-in Bluetooth allows for hands-free phone calls and wireless audio streaming, while the rear USB input and AM/FM radio tuner provide additional audio options. The sound quality is superb, thanks to 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities. Amplifiers can also be added to the system via the 4V/5CH RCA preouts.
The Aerpro AMSZ6 is supplied as a complete Head Unit Upgrade Kit, which includes all the necessary parts for installation. It also retains important vehicle features, including steering wheel controls, USB input, AUX input, and factory reverse camera (if equipped). For seamless on-road and off-road navigation, the optional Aerpro AMHXD3 On-Road/Off-Road Navigation Module (sold separately) can be added to the head unit display.
Please note that Head Unit Upgrade Kits can vary between vehicle models, so it's important to use the Aerpro What Fits Your Car Guide to find the correct parts. The reverse camera retention uses the reverse camera input of the head unit, while the USB input retention uses the USB input on the rear of the head unit. The AUX input retention uses the RCA AUX input on the rear of the head unit.
The Aerpro AMSZ6 is sold as a kit, which includes the following:
- AM9X Multimedia Receiver
- Matte Black Facia Kit
- Steering Wheel Control Interface Harness
- SWC Patch Lead
- Antenna Adaptor
- Camera Retention Adaptor
AMSZ6 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Matte Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Antenna Adaptor
Camera Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: Yes (if equipped)
AUX Input: Yes (if equipped)
USB Input: Yes (if equipped)
Parking Tones: N/A
Factory Amplifier: N/A
Vehicle Menu: N/A
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Reverse Camera Retention uses the reverse camera input of the head unit.
USB Input Retention uses the USB input on the rear of the head unit.
AUX Input Retention uses the RCA AUX input on the rear of the head unit.
Suzuki Swift 2017-
Features
To suit Suzuki Swift (2017-on) vehicles
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control (including phone button), USB input, AUX input and factory reverse camera retention (if equipped)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
