Description

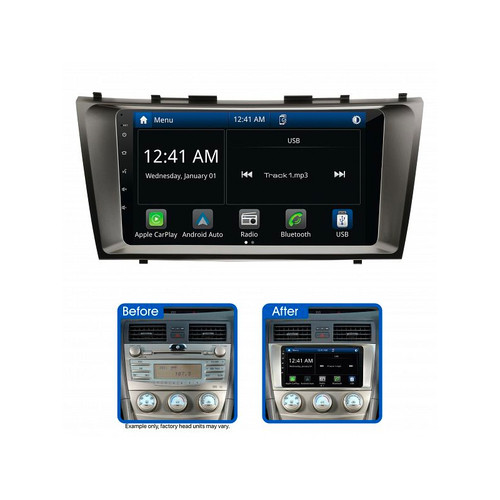

Aerpro AMTO1 Carplay Android Auto replacement system to suit Toyota Camry (06-11) Non Amp
The Aerpro AMTO1 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto is designed specifically for Toyota Camry / Aurion (2006-2011) non-amplified vehicles. Boasting a large 9" capacitive touchscreen display, this Multimedia Receiver is equipped with Apple CarPlay and Android Auto, which can be used wirelessly or wired, built-in Bluetooth for hands-free phone calls and wireless audio streaming, rear USB input, and an AM/FM radio tuner. The sound quality is exceptional, with a 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities. Amplifiers can be added to the system via the 4V/5CH RCA preouts. Supplied as a complete Head Unit Upgrade Kit, the Aerpro AMTO1 includes all the necessary parts for installation and retains essential vehicle features such as steering wheel controls.
For those seeking a seamless on-road and off-road navigation experience, the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately) can be added to the head unit display.
It is important to note that Head Unit Upgrade Kits can vary depending on the vehicle model, so customers should use the Aerpro What Fits Your Car Guide to identify the appropriate parts. This head unit is compatible only with non-amplified vehicles and requires the park brake wire to be connected to function properly with Apple CarPlay and Android Auto.
The Aerpro AMTO1 Multimedia Receiver is sold as a kit, which includes the AM9X Multimedia Receiver, Silver Facia Kit, Steering Wheel Control Interface Harness, and SWC Patch Lead.
AMTO1 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Silver Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Vehicle Feature Retention:
Steering Wheel Controls: Yes
Factory Reverse Camera: No
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: No
Vehicle Menu: N/A
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
Suits non-amplified vehicles only.
This head unit requires the park brake wire to be connected to the park brake for Apple CarPlay and Android Auto to function.
Toyota Aurion 2006-2011
Toyota Camry 2006-2011
Features
To suit Toyota Camry / Aurion (2006-2011) non-amplified vehicles
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control retention
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
