Aerpro AKVW12 9” Head Unit Installation Kit for Volkswagen Vehicles

Aerpro AKVW12 9” Installation Kit – Volkswagen Vehicles

The Aerpro AKVW12 9” Installation Kit provides all the components required to install a 9-inch trapezoid-shaped head unit into a wide range of Volkswagen vehicles, while retaining important factory features such as steering wheel controls (including phone button) and compatibility with factory amplified audio systems.

Designed for modern large-format infotainment upgrades, this kit delivers a clean OEM-style finish and seamless integration when upgrading to compatible Alpine, Kenwood, Pioneer, Aerpro, or Android-based trapezoid head units.

Please Note: This kit is designed exclusively for 9” trapezoid-shaped head units and is not compatible with standard single DIN or double DIN radios. Feature retention may vary depending on the head unit installed.

Compatible 9” Trapezoid Head Units

• Alpine: INE-AW409S, INE-AX809

• Kenwood: DMX80AXS

• Pioneer: DMH-AP6650BT

• Aerpro: AM9X

• Various Android-based trapezoid head units

Key Features

• Designed for a wide range of Volkswagen vehicles

• Supports 9” trapezoid-shaped head units only

• Retains steering wheel controls, including phone button

• Compatible with factory amplified audio systems

• Supports parking camera display with OPS radar overlay

• Includes all required components for a professional installation

• Compatible with Aerpro APP8 aftermarket head unit harness adapters

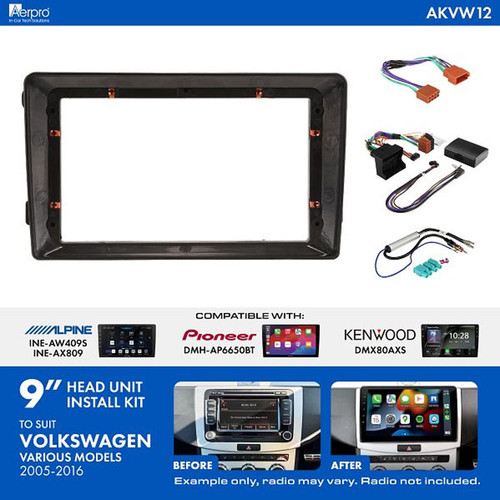

Kit Inclusions

• Black 9” Trapezoid Dash Fascia

• Steering Wheel Control Interface Harness

• SWC Patch Lead

• Antenna Adapter

Vehicle Feature Retention

Important Installation Information

• Only suitable for 9” trapezoid-shaped radios

• Not compatible with single DIN or double DIN head units

• Pioneer CAN Bus features are not supported

  • Select Menu → Steering Wheel Control → With Adapter during setup

• Feature retention depends on the head unit installed

• When installing a high-definition reverse camera, camera resolution will be reduced when used with this kit

Vehicle Compatibility

• Volkswagen Amarok (2011–2016)

• Volkswagen Beetle (2012–2014)

• Volkswagen Caddy (2005–2015)

• Volkswagen EOS (2007–2014)

• Volkswagen Golf MK5 (2004–2009)

• Volkswagen Golf MK6 (2009–2013)

• Volkswagen Jetta (2006–2015)

• Volkswagen Passat (2006–2015)

• Volkswagen Polo (2010–2014)

• Volkswagen Scirocco (2009–2014)

• Volkswagen Tiguan (2008–2014)

• Volkswagen Transporter T5 (2010–2015)
