Description

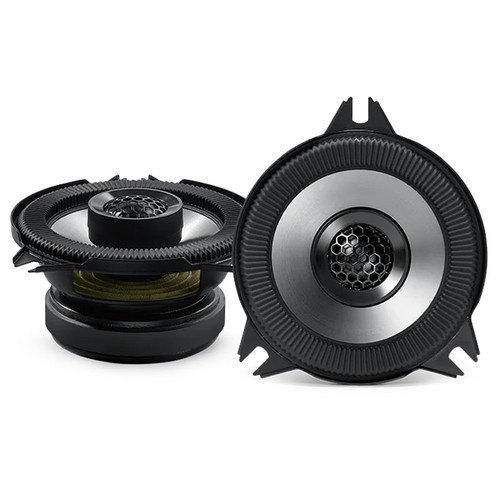

Alpine BassRev BRV-S40 4″ 2-Way Coaxial Speaker System
The Alpine BassRev BRV-S40 is a high-performance 4-inch 2-way coaxial speaker system engineered for vehicles where space is limited but high-quality sound is essential. Part of Alpine’s all-new 2025 BassRev Series, the BRV-S40 combines advanced acoustic engineering, compact design, and OEM-friendly installation for a simple upgrade over factory speakers.
Built with Alpine’s decades of expertise in car audio, the BRV-S40 delivers a well-balanced sound signature, combining deep, controlled bass with smooth, detailed highs. Its compact coaxial design makes it an ideal choice for dash, rear deck, or small door speaker replacements.
High-Excursion Bass with HEDGE Surround Technology
At the heart of the BRV-S40 is Alpine’s HEDGE (High Excursion Design Gathered Edge) surround technology. This innovation dramatically increases woofer excursion, allowing the speaker to move more air and generate higher sound pressure levels in the 67Hz to 120Hz frequency range.
With a maximum linear excursion peak of 20mm, the BRV-S40 produces controlled, punchy bass from a compact speaker, giving a significant low-end improvement over standard factory 4-inch speakers.
Lightweight Polypropylene Woofer for Clear, Accurate Sound
The BRV-S40 features a lightweight yet rigid polypropylene woofer cone designed to resist resonance and vibration. This ensures the speaker maintains structural integrity even under high excursion, delivering balanced midrange and bass frequencies with clarity and precision.
The result is smooth, distortion-free sound that outperforms most factory-installed speakers, even at higher volumes.
Powerful Driver Magnets for Increased Output
The BRV-S40 is equipped with a Strontium Ferrite magnet and a 25mm voice coil, providing strong motor force for improved driver control. Combined with the HEDGE surround, this design enhances cone excursion and allows the speaker to deliver louder, punchier sound with accuracy and detail.
Even in tight installations, the BRV-S40 achieves impressive output and dynamic range.
Integrated 1″ Polyester Soft Dome Tweeter
High frequencies are reproduced by a 1-inch integrated polyester soft dome tweeter, engineered to deliver smooth, detailed, and immersive highs. The low-mass diaphragm captures subtle transients and micro-details with precision, enhancing vocals, cymbals, and string instruments.
Featuring a Neodymium magnet, the tweeter offers excellent efficiency and control in a compact size, providing clear, articulate highs up to 20kHz for a more realistic and engaging listening experience.
OEM-Friendly Installation
The coaxial design of the BRV-S40 allows for direct factory speaker replacement, making installation simple and clean. The integrated tweeter ensures that high frequencies are delivered effectively without the need for separate mounting or complex modifications, preserving factory aesthetics.
OPTIM™Sync DSP Compatibility for Enhanced Bass
When paired with Alpine OPTIM™ DSP amplifiers, the BRV-S40 benefits from Alpine’s proprietary OPTIM™Sync technology. This intelligent algorithm applies dynamic bass boost and pre-EQ specifically tuned for BassRev speakers, extending low-end performance and enhancing tonal balance.
The result is larger, more immersive sound than standard speakers can deliver, with controlled bass that stays precise at higher output levels.
Key Features
-
4-inch 2-way coaxial speaker system
-
Alpine BassRev Series with advanced acoustic engineering
-
HEDGE high-excursion surround for controlled, punchy bass
-
Up to 20mm maximum linear excursion
-
Lightweight, rigid polypropylene woofer cone
-
Strontium Ferrite magnet with 25mm voice coil
-
Integrated 1-inch polyester soft dome tweeter
-
Neodymium magnet for precise high-frequency reproduction
-
Smooth frequency response up to 20kHz
-
Direct factory replacement for easy installation
-
OPTIM™Sync DSP compatibility for enhanced tuning
-
High-quality audio-grade tweeter crossover network
Technical Specifications
Woofer
-
Size: 4-inch (125mm)
-
Cone Material: Polypropylene
-
Surround: HEDGE (High Excursion Design Gathered Edge)
-
Voice Coil: 25mm
-
Magnet Material: Strontium Ferrite
-
Magnet Size: 75mm
Integrated Tweeter
-
Size: 1-inch soft dome
-
Diaphragm Material: Polyester
-
Voice Coil: 20mm
-
Magnet Material: Neodymium
-
Grill: Perforated net
Crossover Network
-
High-quality audio-grade tweeter crossover
Power Handling
-
Peak Power: 120W
-
RMS Power: 40W (CTA-2031 Compliant)
Frequency Response
-
75Hz – 20kHz
Impedance
-
4 Ohms
Sensitivity
-
87dB/W
Recommended Amplification
-
Up to 40W RMS per channel
Woofer Dimensions
-
Frame Diameter: 100.8mm
-
Cutout Diameter: 95mm
-
Mounting Depth: 45.1mm
-
Mounting Height: 14.1mm
-
Magnet Diameter: 75mm
