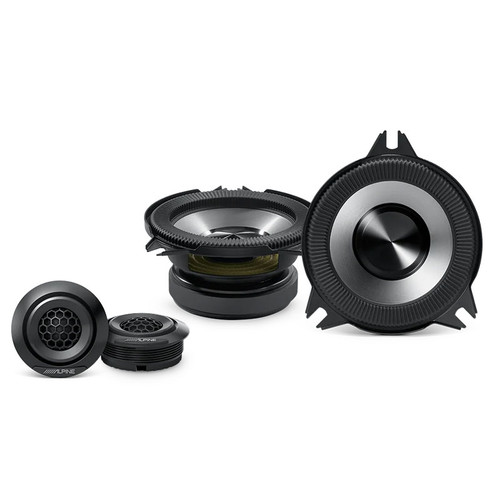

Alpine BassRev BRV-S40C 4″ 2-Way Component Speakers

Alpine BassRev BRV-S40C 4″ 2-Way Component Speaker System

The Alpine BassRev BRV-S40C is a premium 4-inch 2-way component speaker system engineered to deliver exceptional clarity, controlled bass, and high output from compact factory speaker locations. Designed as part of Alpine’s all-new BassRev Series for 2025, the BRV-S40C brings advanced acoustic engineering to vehicles where space is limited but sound quality is critical.

Built on decades of Alpine car audio expertise, the BassRev Series redefines compact speaker performance by combining high-excursion woofer design with refined high-frequency reproduction. The BRV-S40C is ideal for upgrading factory dash, rear, or small door speakers while maintaining OEM fitment and aesthetics.

High-Excursion Bass Performance with HEDGE Surround Technology

Despite its compact size, the BRV-S40C delivers impressive bass output thanks to Alpine’s all-new HEDGE surround technology (High Excursion Design Gathered Edge). This advanced surround structure is engineered to significantly increase woofer excursion, allowing the speaker to move more air and generate higher sound pressure levels in the 67Hz to 120Hz frequency range.

With a maximum linear excursion peak of up to 20mm, the BRV-S40C produces bass that is tight, punchy, and controlled—far exceeding the performance of conventional 4-inch factory speakers. This makes it an ideal solution for vehicles where larger speakers or subwoofers are not practical.

Lightweight Polypropylene Woofer for Clean, Accurate Sound

The 4-inch woofer features a lightweight yet rigid polypropylene cone designed to minimise resonance and unwanted vibration. This material ensures stable cone movement during high-excursion operation, allowing the speaker to maintain clarity and balance even when driven hard.

By preserving structural integrity under demanding conditions, the BRV-S40C delivers smooth, clean midrange and mid-bass reproduction, resulting in a noticeable improvement over standard OEM speakers.

Powerful Motor Assembly for Compact High Output

Supporting the woofer is a robust motor structure featuring a large Strontium Ferrite magnet and a 25mm voice coil. This high-strength motor assembly increases driver force and efficiency, enabling the speaker to deliver louder, punchier sound while maintaining precise control.

The combination of the dense magnet structure, HEDGE surround, and optimised voice coil allows the BRV-S40C to achieve impressive output levels from a compact footprint, making it well-suited for space-restricted installations.

Precision 1″ Soft Dome Tweeters with Neodymium Magnets

High frequencies are handled by 1-inch polyester soft dome tweeters designed to deliver smooth, detailed, and natural sound. The low-mass polyester diaphragm accurately reproduces subtle transients and fine musical detail, ensuring vocals and instruments remain clear and well-defined.

Equipped with Neodymium magnets, the tweeters achieve excellent efficiency and control in a compact design. This results in clean, articulate high-frequency reproduction with a smooth upper harmonic range extending up to 20kHz, enhancing overall sound staging and realism.

OEM-Friendly Tweeter Fitment for Stealth Installations

The BRV-S40C tweeters are engineered for flexible installation in factory locations. By removing the supplied housing and trim ring, the tweeter becomes compact enough to fit into many OEM tweeter mounts such as A-pillars, mirror triangles, or door sail panels.

This design allows for a clean, factory-style appearance with minimal modification, making the BRV-S40C an excellent choice for discreet audio upgrades that preserve the original interior design.

OPTIM™Sync DSP Compatibility for Enhanced Performance

When paired with Alpine’s OPTIM™ DSP amplifiers, the BRV-S40C can take advantage of Alpine’s proprietary OPTIM™Sync technology. This intelligent bass algorithm applies dynamic bass boost and pre-EQ specifically tuned for BassRev speakers.

OPTIM™Sync safely extends low-frequency performance, smooths tonal balance, and unlocks greater output and impact from compact speakers, delivering a larger and more immersive listening experience.

Key Features

• 4-inch 2-way component speaker system

• Alpine BassRev Series with advanced acoustic engineering

• HEDGE high-excursion surround for enhanced bass output

• Up to 20mm maximum linear excursion

• Lightweight, rigid polypropylene woofer cone

• Large Strontium Ferrite magnet motor structure

• 25mm woofer voice coil for improved control and efficiency

• 1-inch polyester soft dome tweeters with Neodymium magnets

• Smooth, detailed high-frequency response up to 20kHz

• OEM-friendly tweeter design for factory-fit installations

• OPTIM™Sync DSP compatibility for enhanced tuning

• High-quality audio-grade tweeter crossover network

Technical Specifications

Woofer

• Size: 4-inch (125mm)

• Cone Material: Polypropylene

• Surround: HEDGE (High Excursion Design Gathered Edge)

• Voice Coil: 25mm

• Magnet Material: Strontium Ferrite

• Magnet Size: 75mm

Tweeter

• Size: 1-inch soft dome

• Diaphragm Material: Polyester

• Voice Coil: 20mm

• Magnet Material: Neodymium

• Mounting Type: Frame-based mounting kit

• Installation: Flush mount, collapsible for OEM fit

• Grill: Perforated net

Crossover Network

• High-quality audio-grade tweeter crossover

Power Handling

• Peak Power: 120W

• RMS Power: 40W (CTA-2031 Compliant)

Frequency Response

• 75Hz – 20kHz

Impedance

• 4 Ohms

Sensitivity

• 87dB/W

Recommended Amplification

• Up to 40W RMS per channel

Woofer Dimensions

• Frame Diameter: 100.8mm

• Cutout Diameter: 95mm

• Mounting Depth: 44.9mm

• Mounting Height: 6.9mm

• Magnet Diameter: 75mm

Tweeter Dimensions

• Frame Diameter: 58mm

• Mounting Diameter: 51mm

• Mounting Depth: 17.6mm

• Height: 25.4mm
