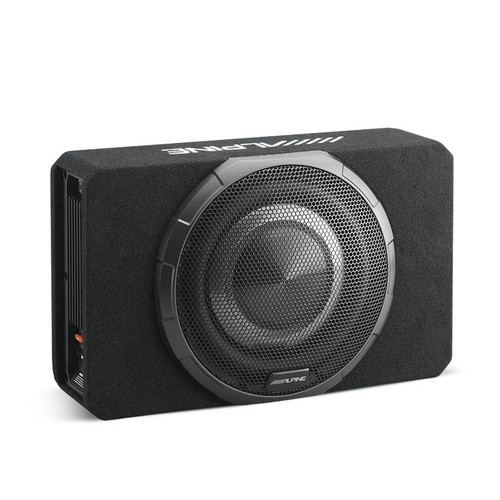

Alpine BassRev PWV-SB10 10″ Slim-Line Powered Subwoofer
The Alpine BassRev PWV-SB10 is a compact, high-performance 10-inch powered subwoofer designed to deliver deep, controlled bass without the bulk of traditional subwoofer enclosures. Engineered with Alpine’s decades of acoustic expertise, the PWV-SB10 combines precision bass reproduction with integrated amplification and advanced DSP technology for a premium listening experience in vehicles of all sizes.
Ideal for both factory and aftermarket audio systems, the PWV-SB10 delivers full-size subwoofer impact from a shallow, space-saving enclosure, providing powerful low-end punch without compromising cabin space.
Revolutionary OPTIM™Sync DSP Technology
The PWV-SB10 features Alpine’s proprietary OPTIM™Sync technology, preloaded into the integrated DSP amplifier. OPTIM™Sync applies dynamic bass boost and pre-EQ specifically tailored for BassRev components, extending low-frequency performance and smoothing tonal response.
This ensures the subwoofer delivers larger-than-life bass while maintaining control and clarity, giving your music a depth and presence that standard speakers alone cannot achieve.
Integrated High-Power Class-D Amplifier
The PWV-SB10 is equipped with a built-in Class-D amplifier rated at 400W RMS (800W peak). The amplifier includes:
-
Phase control (0° / 180°) for optimal integration
-
High-level and RCA inputs for flexible connectivity
-
Low-pass filter (50–200Hz, −24dB/octave, variable)
-
Gain control for precise level adjustment
-
Turn-on mode selection for seamless operation
A plug-type adaptor ensures reliable cable termination and secure power connection, simplifying installation and integration with existing audio systems.
Premium MDF Enclosure with Robust Design
The PWV-SB10 features a carpeted MDF enclosure with double-brace construction, ensuring a solid, rattle-free performance even at high output. The extended grille protects the woofer from kicks, cargo, and pets, while the Alpine-embroidered top adds a premium aesthetic finish.
Despite its shallow design (470mm W × 283mm H × 127mm D), the enclosure maintains rigidity and performance, making it an ideal solution for compact spaces without compromising bass impact.
Groundbreaking X-Max Rubber Surround
Equipped with an ultra-wide, durable rubber surround, the PWV-SB10 accommodates maximum linear cone excursion while maintaining high SPL performance and precise audio reproduction. This ensures accurate, tight, and punchy bass even under demanding conditions.
Seamless Integration with Factory & Aftermarket Systems
Designed for both OEM and aftermarket systems, the PWV-SB10 maintains a clean and discreet appearance while delivering exceptional bass performance. Its shallow form factor and compact dimensions allow installation under seats, in trunks, or behind panels, integrating seamlessly without altering the interior design.
Key Features
-
Preloaded 10″ BassRev subwoofer
-
Built-in 400W RMS Class-D amplifier with OPTIM™Sync DSP
-
Alpine proprietary OPTIM™Sync algorithm for dynamic bass boost
-
Slim-line, shallow enclosure for flexible fitment
-
Sealed design emphasizing low-end punch and feel
-
Engineered to compete with full-size subwoofer enclosures
-
Carpeted MDF enclosure with double-brace structure
-
Extended grille design for woofer protection
-
Alpine-embroidered top for premium aesthetics
-
Phase control, variable low-pass filter, and flexible input options
Technical Specifications
Power Handling
-
RMS: 400W
-
Peak: 800W
Nominal Impedance
-
2Ω (dual 4Ω voice coils, 4Ω + 4Ω)
Frequency Response
-
31Hz – 200Hz
Phase Control
-
0° / 180°
Amplifier Features
-
Integrated Class-D with OPTIM™Sync DSP
-
Low-pass filter: 50–200Hz, −24 dB/octave
-
Inputs: High-level (0.5–10V) & RCA (0.2–2.0V)
Enclosure
-
Shallow MDF with double-brace structure
-
Carpeted finish with extended grille
-
Alpine-embroidered top
Dimensions & Weight
-
Width: 470mm
-
Height: 283mm
-
Depth: 127mm
-
Weight: 9.7kg
