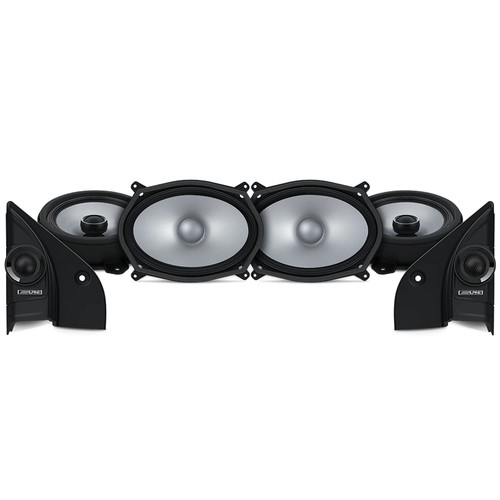

Alpine DM20-S269 S2-Series Premium Sound System for Isuzu D-Max 2020 Onwards

Elevate Your Factory Audio with Alpine’s S2-Series Premium Sound

Transform your Isuzu D-Max audio system with the Alpine DM20-S269 S2-Series Premium Speaker System. Designed specifically for 2020-onwards D-Max models, this direct-fit, plug-and-play speaker upgrade delivers Hi-Resolution audio, unmatched clarity, and powerful bass — all while enhancing your vehicle’s interior aesthetic.

With Alpine’s precision-engineered tweeter housings, large magnet structures, and glass-fibre reinforced cones, the S2-Series speakers provide studio-level sound reproduction, making every track sound vibrant and detailed across the entire frequency range up to 40kHz.

Key Features

Perfect Integration

The pre-assembled A-Pillar tweeter housings with machine-cut Alpine logos and elegant black chrome bezels replace the OEM speakers directly, providing a seamless and factory-style installation.

Premium Tweeter Housing Design

Optimised for superior staging and imaging, the 1” soft dome tweeters deliver a smooth high-frequency response, while the stylish housing elevates the interior aesthetic.

Direct-Fit Installation

All speakers interface directly with the OEM harness for straightforward plug-and-play installation. No cutting, soldering, or modifications are required, saving installation time while preserving the vehicle’s original wiring.

Large Magnet Structure & High Power Handling

Equipped with strontium ferrite magnets, dual-gap voice coils, and HAMR (High Amplitude Multi-Roll) surrounds, these speakers provide louder, punchier sound, accurate bass response, and higher SPL.

Glass-Fibre Reinforced Cones

Lightweight yet rigid cones ensure fast cone velocity, rapid response, and precise midrange reproduction.

Exclusive HAMR Surround

Allows for greater linear cone excursion, maintaining control over the driver for powerful bass and pure sound even at high volumes.

Technical Specifications

Tweeter:

• Type: 1” (2.5cm) Ring Radiator Tweeter

• Magnet: Neodymium

• Voice Coil: Dual Gap for linearity and clarity

• Swivel Application: Adjustable for optimal in-car sound

Woofer:

• Cone: Hybrid Multi-Layer Cone

• Motor Technology: Linear Drive Technology

• Surround: HAMR Surround

• Voice Coil: Dual Gap for clarity and linear response

• Magnet: Strontium Ferrite

• DX Ring & Wave Guide included

• Bi-Amp Ready Design

General:

• Peak Power Handling: 260W

• RMS Power Handling: 85W

• Nominal Impedance: 4Ω

• Frequency Response: 55Hz – 40kHz

• Mounting Depth: 59mm

• In-Line High-Quality Crossover

• Shallow Mounting Design with Mounting Adapter Kit included

Dimensions:

• Front Woofer: 165mm (6×9″), Mounting Diameter 160mm H x 240mm W

• Rear Woofer: 165mm (6-1/2″), Mounting Diameter 176mm (6-15/16″), Depth 59mm (2-3/8″)

⚡ Upgrade Your Isuzu D-Max Audio Experience
With the Alpine DM20-S269 S2-Series Premium Sound System, enjoy high-resolution music, crystal-clear highs, and powerful, controlled bass. Perfectly engineered for your D-Max, this system combines professional-grade sound quality with sleek interior styling for a truly premium upgrade.
