Description

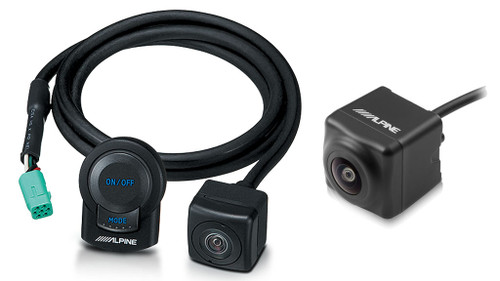

Alpine HCE-FRKIT Front and Rear Drive Assist Camera System
he HCE-FRKIT is an extraordinary kit including a front and rear camera maximising safety and convenience behind the wheel of your vehicle.
This kit includes the HCE-C252RD a rear drive assist camera making parking and reversing manoeuvres simpler and safer than ever, plus the HCE-C257FD a front direct camera enhances visibility not only further in front of you but also coming out of alley ways or around obstructed corners, furthermore this kit includes the KCX-200B a camera expansion box enabling easy access of switching between the two camera’s.
The HCE-FRKIT makes manoeuvres that were previously difficult or thought to be impossible easy to achieve with the guidance of your Alpine audio visual screen.
Features
HCE-C257FD
- High Visibility In Day and Night
- Wide 180è_ (Horizontal) Viewing Angle
- Automatic Image Adjusting Function
- Automatic Mirror Image (NTSC)
- Direct Connection for Alpine MMS
- Compact Installation Size
HCE-C252RD
- High Visibility In Day and Night
- Wide 180è_ (Horizontal) Viewing Angle
- Automatic Image Adjusting Function
- Automatic Mirror Image (NTSC)
- Direct Connection for Alpine MMS
- Compact Installation Size
Specifications
Dimensions
HCE-C257FD
- Camera: 23.6 x 23.6 x 25.8mm (excluding projection on the rear)
- Camera Cable Length: 1m
- Camera Extension Cable Length: 3m
HCE-C252RD
- Chassis Size (W x H x D) mm : 23.6 mm x 23.6mm x 25.8mm
General
HCE-C257FD
- Power Requirement: 6.0V DC (5.4 to 9.0VDC allowable)
- Ground Type: Negative Ground
- Max. Power Consumption: 0.8W (6.0V)
HCE-C252RD
- Power Requirement: 6.0V DC (5.4 – 9.0V DC allowed)
- Power Consumption: 0.8W (6.0V)
- Output Image: Mirror image, CVBS (NTSC video signal)
- Image Sensor: 1/4″ Type Color CMOS Image Sensor, Aspect Ratio 16:9
- Output Drive Capacity: 1 Vp-p (75 ohms)
- Effective Number of Pixels: 1280(horizontal) x 720(vertical) approximately 0.93 Mega pixels
- Lens Section: Focal Length: f=0.9mm
- Lens: Brightness: Brightness: F=1.8
- Approximate Angle of Field: Horizontal: 180°, Vertical: 142°
- Automatic Image Adjusting Function: Automatic exposure adjustment, Automatic white balance adjustment
- Synch-System: Internal synchronization
- S/N ration: 41dB or more
- Resolution (horizontal, center area): 330 TV lines
- Operating Temperature: -30°C – +70°C
- Illumination Range: 1.5Lx to 100kLx
- Weight: 33g
Camera
- Output Image: Normal image, CVBS (NTSC Video signal)
- Image Output Impedance: 75 Ohms (1Vp-p)
- Image Sensor: 1/4″ Type Color CMOS Image Sensor, Aspect Ratio 16:9
- Effective Number of Pixels: 1280 (horizontal) x 720 (vertical) approximately 0.93 Mega pixels
- Lens: Focal Length: f=0.9mm
- Lens: Brightness: F=1:1.8
- Angle of Field: Horizontal = 180° , Vertical = 142°
- S/N Ratio: 41 dB or more
- Resolution (Horizontal. Centre Area): 330 TV Lines
- Operating Temperature: -30°C – +70°C
- Illumination Range: Approximately 1.5Lx to 100kLx
- Weight: 44g (including cable but not including bracket and screw)
