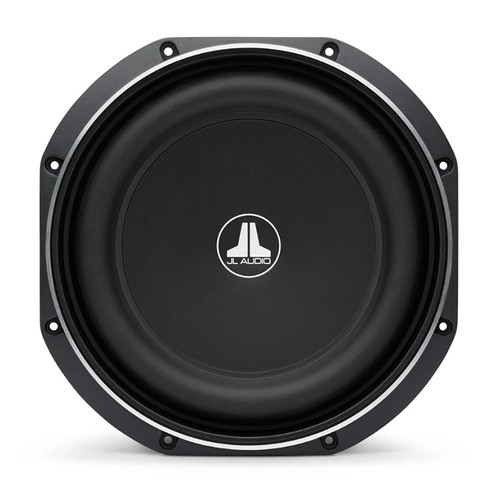

JL Audio 10TW1-4 10" Thin-Line Subwoofer – 4Ω, 300W RMS
The JL Audio 10TW1-4 10-inch Thin-Line Subwoofer delivers deep, articulate bass from a remarkably compact package. With an ultra-shallow 111 mm mounting depth and minimal 22 mm grille protrusion, it’s engineered for tight-space installations where traditional subwoofers simply won’t fit. Its 4Ω impedance allows flexible system design and amplifier matching, handling up to 300 watts RMS with ease.
Key Features:
-
4Ω Configuration – Versatile impedance for flexible amplifier pairing.
-
Compact Thin-Line Design – Requires only 0.87" frontal clearance (with grille), perfect for space-limited installs.
-
300W RMS Power Handling – Capable of clean, powerful bass in both sealed and ported enclosures.
-
DMA-Optimised Motor Structure – Ensures long, linear excursion with low distortion.
-
Recessed Suspension System – Allows greater forward excursion without increasing overall depth.
-
Injection-Moulded Polypropylene Cone – Mineral-filled, moisture-resistant design for durability and precision.
-
Concentric Tube Suspension Technology – Patented JL Audio system enabling shallow mounting without sacrificing excursion.
-
Optimised Lead-Wire System – Minimises noise and maintains reliability under heavy loads.
-
Flexible Enclosure Options – Works in sealed enclosures as small as 0.35 cu. ft. or ported enclosures of 0.625 cu. ft.
-
1-Year Warranty – Backed by JL Audio’s renowned quality assurance.
Specifications (10TW1-4):
-
Size: 10"
-
Power Handling (RMS): 300W
-
Recommended Amp Range: 75–300W
-
Nominal Impedance: 4Ω
-
Sensitivity: 82.2 dB (1W/1m)
-
Mounting Depth: 111 mm (4.36")
-
Frontal Clearance (with grille): 22 mm (0.87")
-
Sealed Enclosure Volume (net): 9.91 L (0.35 cu. ft.)
-
Ported Enclosure Volume (net): 17.7 L (0.625 cu. ft.)
-
-3dB Cutoff Frequency (sealed): 47.2 Hz
-
System Resonance (FC sealed): 56.8 Hz
Why Choose the 10TW1-4?
Compact yet powerful, the JL Audio 10TW1-4 is the ultimate solution for vehicles with limited space. Its shallow mounting depth, small enclosure requirements, and signature JL Audio bass performance make it ideal for stealthy, high-output installations where sound quality cannot be compromised.
