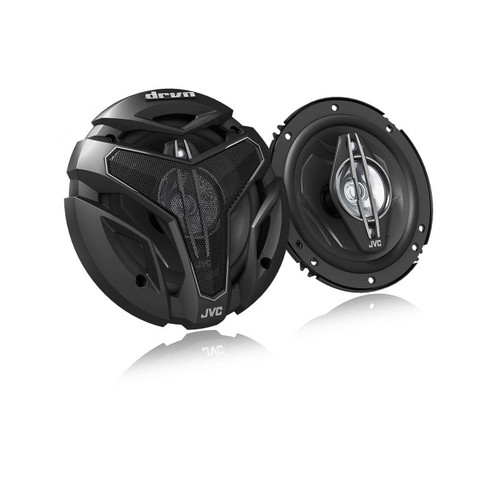

JVC CS-ZX640 (6-1/2") 4-Way Coaxial Speakers

Sound Dynamics Design with 3D Shaped Grill

Based on the drvn Series, the drvn XX Series is designed to be even more aggressive and tough-looking. Semi-open grilles have a speaker box effect, diffusing warm, ambient sound across the vehicle.

Aramid Carbon Mica 3D Cone Woofer

Aramid carbon mica 3D cone woofer provides increased strength with less distortion, precise amplitude, and speedy response.

Rubber Surround

Durable and quick-responding rubber surround supports high-power audio input, with undistorted bass.

Enhanced Mid-Range Sound

Larger cones deliver lively mid- and high-range sound as well as clear vocals, resulting in improved overall sound quality.

Technical Specifications

Product Support

CS-ZX640

Woofer

Size      16 cm (6-1/2'')

Type    4-Way Coaxial

Diaphragm      Carbon Mica 3D Cone

Surround         Single Roll Rubber Surround

Magnet           Ferrite Magnet

Midrange

Size      5.2 cm (2-1/16'')

Diaphragm      Poly-Ether Imide Cone

Magnet           Ferrite Magnet

Tweeter

Size      1.5 cm (19/32'')

Diaphragm      Poly-Ether Imide Dome

Super Tweeter 1

Size      1.2 cm (1/2'')

Diaphragm      Poly-Ether Imide Dome

General

Frequency Response  40 - 25,000Hz

Power Handling Capacity (RMS)         50W

Power Handling Capacity (Peak Power)         350W

Impedance      4 ohms

Sound Pressure Level  89dB/W.m

Weight 1.12kg (2.5 lbs)

Magnet Mass  445g (15.7 oz)

Mounting Depth         57 mm (2-1/4'')
