Description

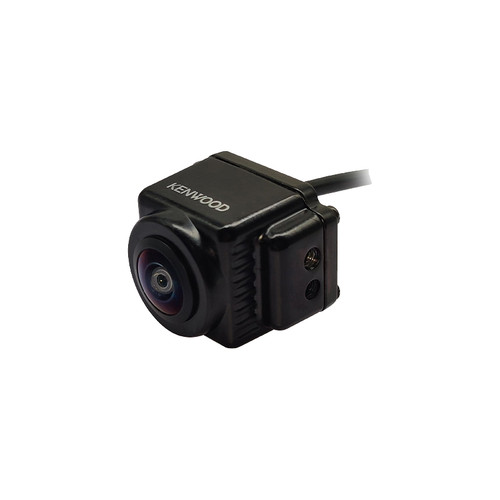

CMOS-150HD Multi-View HD Camera
Upgrade your vehicle’s safety and visibility with the CMOS-150HD, a high-definition multi-view camera designed to deliver crystal-clear imaging in all conditions. Compact, rugged, and versatile, this camera ensures you see every detail whether driving, reversing, or parking.
Key Features:
-
High-Definition Clarity: True 1280 × 720 (720P) HD resolution for sharp, detailed images on compatible receivers.
-
Wide Viewing Angle: Horizontal 170° and vertical 100° coverage to minimize blind spots.
-
Selectable Views: Switch easily between rear or front view (mirror image available by disconnecting the signal wire).
-
Built for All Conditions: IP67-certified waterproof and dustproof housing with an operating range from -30℃ to 85℃.
-
Reliable Performance: HD-TVI output with a smooth 30fps frame rate for real-time visuals.
-
Compact & Lightweight: Just 50g (camera only), designed for discreet yet powerful integration.
-
Flexible Installation: Works with 12V/24V systems and includes a 2.14m cable for convenient mounting.
Specifications:
-
Resolution: 1280 × 720 (HD)
-
Lens: F2.0
-
Viewing Angle: 170° (H) / 100° (V)
-
Output: HD-TVI
-
Dimensions: 31.1 × 23.0 × 25.2 mm
-
Weight: 50g (camera), 100g (with DC box unit)
-
Operating Voltage: 12V/24V
-
Operating Temp: -30℃ to 85℃
Compatible Models:
-
DAX8000XDS
-
DMX9724XDS / DMX9724XS
-
DMX9021S*
-
DDX9020DABS*
-
DDX920WDABS*
*Note: DMX9021S, DDX9020DABS, and DDX920WDABS do not support HD front camera.
