Description
TS-ME770TC

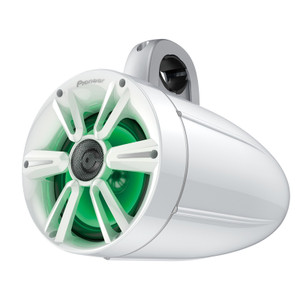

7.7″ IPX7 Rated Tower Speaker (pair) with Built-In RGB LED Lighting – White with Classic Grille
Pioneer ME-series speakers (both Sports and Classic designs) are protected from the effects of sun and water exposure, meeting both IPX7 and ASTM D4329 certification to achieve all-weather reliability.
Mica Reinforced IMPP monocoque cone with butyl rubber surround, constructed using an advanced in-mold bonding technique for superior water resistance while maintaining high quality, powerful sound.
The symmetrical motor design with high strength suspension is optimized to provide stability, linearity and clear, low distortion sound reproduction. Lightweight polyimide (PI) tweeter diaphragm and uniquely shaped wave guide provides natural and clear vocals with wide dispersion.
The TS-ME770TC comes in a classic, contemporary grille that cosmetically integrates seamlessly into marine interiors and cabin designs.
* Tube clamp mounts not included. Sold separately.
IPX7 Certified
Marine products are constantly exposed to the elements but with IPX7 certification you can be assured your Pioneer speakers are purpose built for these environments. Highly durable but also focused on providing a superb audio experience your Pioneer speakers are the perfect addition to your marine audio system!
ASTM D4329 Certified
Additionally, ASTM D4329 certification has been achieved ensuring the UV stability and durability of Pioneer Marine speakers are built for Australian conditions.
GENERAL
Size 7.7"
Design 7.7" Enclosed Offset Driver System with Horn
Tweeter Design 28mm Dome Tweeter
Tweeter Composition Polyimide
Tweeter Magnet Composition Neodymium
Woofer Composition Injected Molded Polypropylene™
Woofer Surround Trex Plane
Woofer Magnet Composition Ferrite
Warranty 1 Year
MARINE
Water Resistant IPX7
UV Resistant ASTM D4329
Grille Style Classic White Grille
INSTALLATION SPECIFICATION
Max. Music Power (Nominal) 250W Peak (100W RMS)
Frequency Response 42 Hz to 23 kHz
Sensitivity (1W/1 m) 90 dB
Impedance 4Ω
Crossover Frequency
Mounting Depth
Cut-Out Dimensions
