Aerpro AMMB12 Carplay Android Auto replacement system to suit Mitsubishi Outlander (07-12) Peugeot 4007 (09-12) Rockford Amp

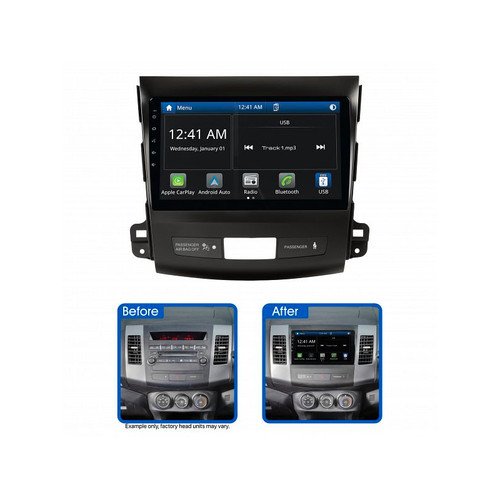

Introducing the Aerpro AMMB12 9" Multimedia Receiver with Wireless Apple CarPlay and Android Auto, specially designed to fit Mitsubishi Outlander ZG, ZH (2007-2012) and Peugeot 4007 (2009-2012) vehicles with factory Rockford Fosgate amplified systems*. With a large 9" capacitive touchscreen display, this Multimedia Receiver features Apple CarPlay and Android Auto, which can be used wirelessly or via a cable, as well as built-in Bluetooth for hands-free phone calls & wireless audio streaming, rear USB input, and an AM/FM radio tuner. You can enhance your audio experience with the 40Wx4 max output, 8 band graphic EQ, and time alignment capabilities. Plus, amplifiers can be added to the system via the 4V/5CH RCA preouts.
The Aerpro AMMB12 is supplied as a complete Head Unit Upgrade Kit, which includes all the parts required to complete the installation, and retains essential vehicle features, including steering wheel controls, access to the vehicle menu, factory Rockford Fosgate amplified system, and factory reverse camera (if equipped, model dependent). You can also enjoy seamless on-road and off-road navigation through the head unit display by adding the optional Aerpro AMHXD3 On-Road / Off-Road Navigation Module (sold separately).
Please note that Head Unit Upgrade Kits can vary between vehicle models, so it's crucial to use the Aerpro What Fits Your Car Guide to find the correct parts. *Not compatible with all levels of Rockford Fosgate amplification. AXTOMI2 and AXSWC may be required for these vehicles (sold separately), and professional installation is required. Reverse Camera Retention uses the reverse camera input of the head unit. Camera Retention Adaptor is only suitable for vehicles with MMCS (screen) and is not applicable for standard Rockford with no screen.
This head unit is sold as a kit, which includes the AM9X Multimedia Receiver, Black Facia Kit, Steering Wheel Control Interface Harness, SWC Patch Lead, and Camera Retention Adaptor. Upgrade your car's audio system today with the Aerpro AMMB12 9" Multimedia Receiver.
AMMB12 HEAD UNIT UPGRADE KIT SPECIFICATIONS:
Kit Inclusions:
AM9X Multimedia Receiver
Black Facia Kit
Steering Wheel Control Interface Harness
SWC Patch Lead
Camera Retention Adaptor
Vehicle Feature Retention:
Steering Wheel Controls: Yes (including phone button)
Factory Reverse Camera: Yes (if equipped, model dependent)
AUX Input: N/A
USB Input: N/A
Parking Tones: N/A
Factory Amplifier: Yes (excluding some models, see important notes below)
Vehicle Menu: Yes
Other: N/A
AM9X MULTIMEDIA RECEIVER SPECIFICATIONS:
LCD Display:
Size: 9"
Resolution: 1024x600
Touch Screen: Capacitive (G+G)
System Specifications:
OS System / CPU: Linux 3.4.5 / SPHE8368U
RAM / Flash Memory: 128MB / 256MB
DIN Size: 2 DIN Short Body
Power Output
Rated Power (4 Ohm @ 14.4 V, 1 kHz, THD 10 %): 4CH x 25W
MAX Power (4 Ohm): 4CH x 40W
Media Playback: MP3 / AAC / FLAC / Xvid / MPEG 1, 2, 4
Device Ports
USB (Rear) Playback Formats: CPAA & Media
USB (Rear) Power - Voltage/Amps: 5V/1.5A
USB MAX Capability: FAT32_32GB
Aux Inputs / Outputs:
Rear A/V Input (RCA Type - 3pcs): Yes
Composite Video Outputs: Yes
Reverse Camera Input: Yes (720P AHD Compatible)
Smartphone Connectivity: CarPlay & Android Auto (Wireless and Wired)
Bluetooth:
Bluetooth Built-In: Yes (A2DP, AVRCP, HFP, PBAP)
Bluetooth Version: V4.2+EDR
Microphone: Built-in & External Microphone
ID3 Tag/Information (Artist, Album, Song): Yes
HFP Profile (1.2, 1.4 or HD Voice 1.6): HFP 1.6
Tuner:
AM/FM (# of Presets): AM 12 (6X2) / FM 18 (6X3)
FM Frequency Span (MHz): 87.5-108.0MHz (0.05MHz Step)
AM Frequency Span (KHz): 529-1629KHz (9KHz Step)
RDS: Yes
FM Antenna Connector Impedance: 50 Ohm
FM Tuner Connector: Motorola
RCA Preamp Outputs:
RCA Preamp Output: 2-Pair (Front / Rear)
Subwoofer RCA Output: Yes
Subwoofer Level Control: Yes
Preamp Voltage (1.2,2,4,5,6): 4V p-p
Tone Control:
8 Band: 8 Band (50/200/400/800/1K/3K/7K/15K)
Loudness: Yes
LPF - Frequencies (Sub): Yes
8 Preset EQs: Default, Custom, Classic, Rock, Jazz, Electric, Pop, Soft
Other Features:
Steering Wheel Control: Yes, with Aerpro SWC Adaptor
OSD Language: English
LED Colour (Buttons / Keys): White
Accessories:
Power Harness: Yes with ISO/3.5mm jack
AV-In Cable (RCA with Audio L/R, Video In): Yes
Reverse Camera Input (with 12V power supply to the camera): Yes
4.1CH Audio Out Cable: Yes
External Microphone: Included
IMPORTANT INFORMATION:
Head Unit Upgrade Kits can vary between vehicle models, please use the Aerpro What Fits Your Car Guide to find the correct parts.
*Not compatible with all levels of Rockford Fosgate amplification. AXTOMI2 and AXSWC may be required for these vehicles (sold separately). Professional installation required.
Reverse Camera Retention uses the reverse camera input of the head unit. Camera Retention Adaptor only for vehicles with MMCS (screen). Not applicable for standard Rockford with no screen.
Mitsubishi Outlander 2007-2012 ZG, ZH
Peugeot 4007 2009-2012
Features
To suit Mitsubishi Outlander ZG, ZH (2007-2012) and Peugeot 4007 (2009-2012) vehicles with factory Rockford Fosgate amplified systems*
Includes all the parts required to complete the installation and to retain important vehicle features
Apple CarPlay & Android Auto (wireless / wired)
Hema Maps Ready, experience seamless on-road and off-road navigation through the head unit display (optional AMHXD3 required, sold separately)
Large 9" capacitive touchscreen display
Steering wheel control (including phone button), access to the vehicle menu, factory Rockford Fosgate amplified system and factory reverse camera retention (if equipped, model dependent)
Bluetooth with external microphone included (A2DP, AVRCP, HFP, PBAP)
AM / FM Tuner with RDS & presets (18FM/12AM)
Rear USB input (1.5A max charging)
Reverse camera input (AHD 720P compatible) & rear A/V input
40Wx4 Max with 8 band graphic EQ and time alignment capabilities
4V/5CH RCA Preout and subwoofer level control
