Description
Description

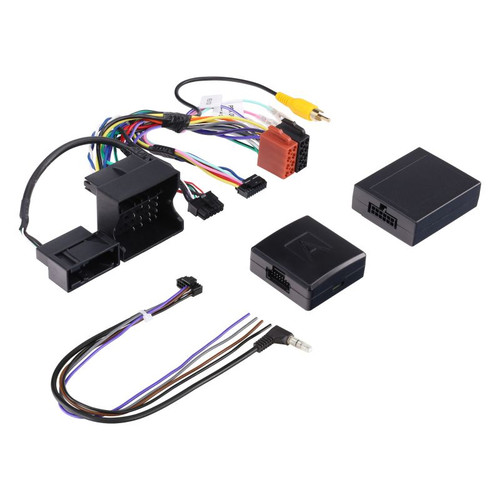

The Aerpro SWVW3V Steering Wheel Control and Reverse Camera Retention Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls and factory reverse camera. Engineered to suit various Volkswagen and Skoda vehicles with RNS510/RNS315/RCD510 original headunit and quadlock connector, the interface includes a harness fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. The SWVW3V converts the factory RGB camera signal to a standard CVBS video output via RCA, allowing the factory reverse camera to display on your new aftermarket headunit. This includes factory cameras concealed behind the motorised rear VW badge, with badge operation continuing to be controlled by the vehicle as standard. Active guidelines are also retained on vehicles equipped with this feature. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface. This interface is CANBUS compatible and provides various outputs including Reverse Trigger, Park Brake and Speed Pulse.
Please Note:
Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
Aftermarket headunit must have an RCA reverse camera input to retain the factory reverse camera.
Factory reverse camera, motorised badge camera and active guidelines are retained only where factory fitted. This interface does not add these features to vehicles not originally equipped.
Not compatible with factory OEM amplified systems.
In some vehicles, factory bluetooth module may need to be disconnected to enable steering wheel phone buttons to function.
Specification
INTERFACE TYPE: CANBUS
PATCH LEAD TYPE: SW
PHONE BUTTON COMPATIBILITY: YES*
*Compatibility can differ between vehicles.
VOICE ASSISTANT SUPPORT AVAILABLE: YES
If your steering wheel control does not have a Voice Assistant button, the answer button will function as voice support instead
Aftermarket headunit and phone must also support Voice Assistant feature for this feature to work
OUTPUTS:
REVERSE TRIGGER: YES (PURPLE/WHITE)
PARK BRAKE: YES (GREEN)
SPEED PULSE: YES (PINK)
ILLUMINATION: YES (ORANGE)
REVERSE CAMERA VIDEO: YES (RCA, CVBS)
AMP REMOTE: NO
TELEPHONE MUTE: NO
OTHER RETENTION:
FACTORY REVERSE CAMERA: YES (RGB TO CVBS CONVERSION)
MOTORISED VW BADGE CAMERA: YES (IF EQUIPPED)
ACTIVE GUIDELINES: YES (IF EQUIPPED)
OEM AMPLIFIED SYSTEM: NO
NOTES:
Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
Aftermarket headunit must have an RCA reverse camera input to retain the factory reverse camera.
Factory reverse camera, motorised badge camera and active guidelines are retained only where factory fitted. This interface does not add these features to vehicles not originally equipped.
Not compatible with factory OEM amplified systems.
In some vehicles, factory bluetooth module may need to be disconnected to enable steering wheel phone buttons to function.
Custom button remapping available, requires USB-C cable (sold separately) click here for remapping instructions
Features
Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls and factory reverse camera
Retains the factory RGB reverse camera, including factory fitted cameras built into the motorised rear VW badge
Converts the factory RGB camera signal to CVBS for direct connection to the RCA reverse camera input of your aftermarket headunit
Retains factory active guidelines (if equipped)
Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
Supports OEM Phone Button* when connected to compatible aftermarket bluetooth headunits
Provides output feeds for park brake, reverse gear and speed pulse
CAN-BUS integration compatible, no additional modules required for CAN-BUS vehicles
Not compatible with factory OEM amplified systems
In some vehicles, factory bluetooth module may need to be disconnected to enable steering wheel phone buttons to function
Fitted with a vehicle specific plug, no cutting of wires required
To simplify installation, this interface is compatible with Aerpro APP8 aftermarket headunit harness adapter
