Description
escription

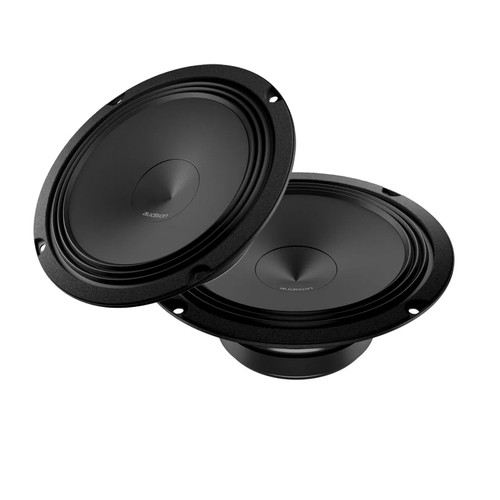

AP 6.5P woofer component has been designed to perform at its best in OEM placements, combining excellent power handling and efficiency featuring a very wide excursion to cope with the most important dynamic peaks without any compression. Its impressive magnetic assembly provides the energy needed for perfect control even during limit excursions. The CCAW (Copper- Clad Aluminium Wire) voice coil (32 x 14 mm, 1.25 x 0.55 in) optimally manages the greater applied power. The basket was completely redesigned with the aid of simulations to lower the resistance of air flows, while maintaining compact sizes to facilitate the installation.
Specification
PRIMA LINE SPEAKER COMPONENT
Component: Woofer
Woofer Size: 165MM (6.5")
Power Handling
330W peak
110W continuous
Impedance 4 Ohm
Frequency Response Hz 50 - 5k
Sensitivity: 92.5 dB/Spl
Magnet: High density flux ferrite
Features
Increased excursion of the mobile group for a superior dynamic response
Optimized electro-acoustic parameters to maximize performance for OEM placements
Magnetic group sized for perfect control even at maximum cone excursion
CCAW (Copper-Clad Aluminium Wire) voice coil (32 x 14 mm) to optimally manage the greater applied power
Compact size basket for easy OEM installations
