Description

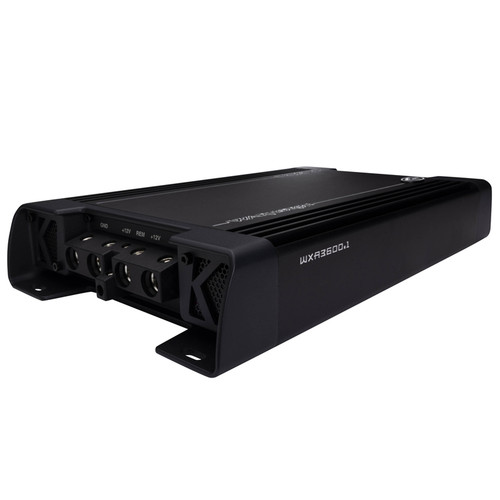

KICKER WXA3600.1 WARHORSE Mono Amplifier
Not your average amp — the WARHORSE WXA3600.1 is engineered entirely in-house by KICKER R&D for extreme reliability under sustained, high-power bass demands. Built on a full-bridge Class-D design, this mono amplifier is designed for serious SPL and daily-driver reliability alike.
Quad micro-controller-regulated cooling fans keep the amp running cool under intense use, while daisy-chaining capability lets you run remote power across multiple amps for cleaner, simplified installs. A dedicated competition mode switch locks in crossover settings, prevents potentiometer creep, and makes gain-matching multiple amps straightforward — ideal for SPL builds and competition setups.
The WXA3600.1 includes a premium remote bass-level control with a magnetic mount for easy in-cabin access, plus a heavy-duty, magnetic-mount diagnostic tool for monitoring voltage and amp protection status on the fly. It's fully compatible with most factory or aftermarket source units featuring FIT+™ differential inputs.
Key Features
- Full-bridge Class-D design engineered in-house by KICKER
- Quad micro-controller-regulated cooling fans
- Daisy-chain remote power across multiple amps
- Competition mode switch for locked crossover settings, no potentiometer creep, and easy gain-matching
- Premium magnetic-mount remote bass-level control included
- Magnetic-mount diagnostic tool for voltage and protection status monitoring
- FIT+™ differential input compatibility with most factory and aftermarket source units
Specifications
RMS Power is 3600W into 1 Ohm mono, 2500W into 2 Ohm mono, and 1400W into 4 Ohm mono (all rated @ 14.4V, <1% THD). Dynamic power is rated at 5000W. Frequency response spans 10–200Hz, with a signal-to-noise ratio greater than 90dB (A-weighted, re: rated power) and greater than 70dB (ref: 1W output). Input sensitivity is 125mV–5V on low level and 1V–40V on high level.
The amp features a variable low-pass electronic crossover from 50–200Hz at 24dB/octave, and a defeatable subsonic filter at 15Hz, 24dB/octave. Dimensions are 6.5cm (H) x 23.2cm (W) x 39.1cm (L).
Running Multiple Amps?
If you're pairing two mono amps or powered subwoofers, the DBRC Remote lets you control both from the same knob.
Warranty
When purchased from an Authorised KICKER Dealer, this product is covered by KICKER's 2-year warranty against defects in material and workmanship under normal use from the date of original purchase.
