Description

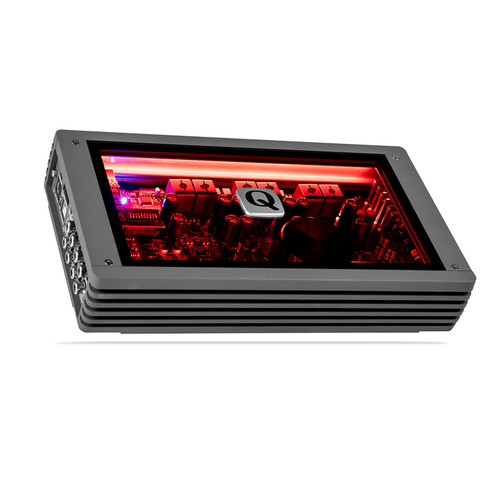

MB Quart QA1-900.6D Q-Series 900 Watt 6 Channel DSP Amplifier with Integrated Bluetooth DSP Control
SKU: MBQ-QA1-900.6DSP
Category: Q-Series Amplifier / DSP
The MB Quart QA1-900.6D Q-Series 6 Channel DSP Amplifier is a high-performance full-range Class D amplifier designed for precision tuning, clean power delivery, and advanced system control. Engineered for universal installation, it combines efficient amplification with a fully integrated digital signal processor (DSP), making it suitable for factory system upgrades and custom aftermarket audio builds.
With 900 watts maximum power output and six independent channels, this amplifier provides flexible system configuration options including multi-speaker setups or bridged operation for subwoofer integration. Its DSP architecture allows full control over crossover points, EQ, phase alignment, and signal shaping through PC, iOS, or Android applications, enabling professional-level tuning without external processors.
The built-in Bluetooth connectivity provides direct wireless control of DSP settings, simplifying real-time audio adjustments during installation and tuning. High- and low-level inputs ensure compatibility with both factory head units and aftermarket sources, while the Q-Stasis preamp stage is designed to reduce incoming signal noise for improved clarity and dynamic range.
Key Features:
6 channel full-range Class D DSP amplifier
900W maximum output power
6 x 90W RMS @ 4 ohms
6 x 150W RMS @ 2 ohms
3 x 300W bridged @ 4 ohms
Integrated DSP with PC, iOS and Android tuning support
Built-in Bluetooth DSP control interface
31-band graphic EQ and fully parametric EQ control
Adjustable crossovers: 20Hz – 20kHz (HPF / LPF)
Phase adjustment: 0–180 degrees
High and low-level inputs for OEM and aftermarket integration
Q-Stasis preamplifier stage for reduced noise and improved clarity
Selectable auto turn-on (DC signal sensing)
Wired bass remote included
RCA pass-through outputs for system expansion
Advanced protection circuitry (thermal, overload, DC, short circuit)
Technical Specifications:
Amplifier Class: Full Range Class D
Total Channels: 6
Max Power: 900 watts
RMS Power @ 4 ohms: 6 x 90W
RMS Power @ 2 ohms: 6 x 150W
Bridged Power @ 4 ohms: 3 x 300W
Frequency Response: 10Hz – 23kHz
Signal to Noise Ratio: >96dB
Total Harmonic Distortion: 1.0%
Input Voltage Range: High 1.4–14.5V / Low 0.5–5.1V
Crossover Range: 20Hz – 20kHz (DSP controlled)
Power Input: 4 AWG
Speaker Output: 12 AWG
Fusing: 2 x 30A Mini ATC
System Integration:
The QA1-900.6D is designed for advanced OEM and aftermarket integration, offering full DSP control for tuning factory speaker systems or building high-performance multi-channel audio setups. With Bluetooth-enabled DSP access, installers can make real-time adjustments without requiring physical PC connection during tuning.
