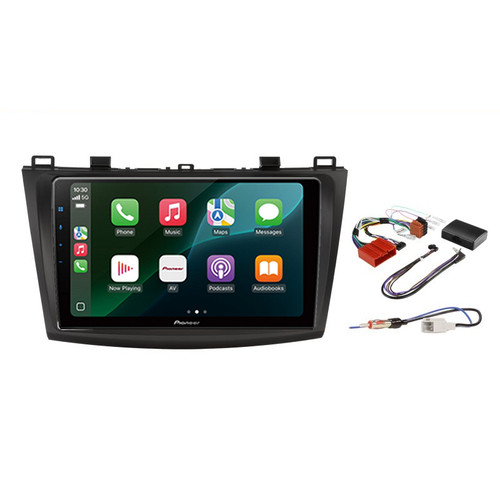

Pioneer DMH-AP6850BT 9-Inch Apple CarPlay & Android Auto Head Unit + Aerpro AKMZ4 – Mazda 3 BL 2009-2013
Upgrade your Mazda 3 BL 2009-2013 with the Pioneer DMH-AP6850BT 9-inch touchscreen head unit and Aerpro AKMZ4 vehicle-specific installation kit. This complete Mazda 3 stereo upgrade combines Pioneer's latest smartphone connectivity, advanced audio processing and large touchscreen display with a purpose-designed Aerpro installation solution for non-amplified Mazda 3 vehicles.
The Pioneer DMH-AP6850BT features a large 9-inch WSVGA capacitive touchscreen, wireless and wired Apple CarPlay, wireless and wired Android Auto, Bluetooth 5.4, WebLink, dual AHD camera inputs and advanced 48-bit DSP audio processing.
The Aerpro AKMZ4 provides the vehicle-specific fascia, steering wheel control interface, patch lead and antenna adaptor required to install a compatible 9-inch trapezoid-shaped aftermarket head unit into the Mazda 3 BL. The kit is designed for non-amplified Mazda 3 vehicles and retains steering wheel controls where equipped.
This makes the package an ideal solution for customers searching for a Mazda 3 head unit upgrade, Mazda 3 Apple CarPlay, Mazda 3 Android Auto, Mazda 3 stereo upgrade, Mazda 3 Pioneer head unit, Mazda 3 9-inch head unit, Mazda 3 aftermarket stereo or Mazda 3 radio upgrade.
Mazda 3 BL 2009-2013 Head Unit Upgrade
Replacing the original Mazda 3 stereo with the Pioneer DMH-AP6850BT provides a major technology upgrade, bringing modern smartphone connectivity, touchscreen control, hands-free calling, music streaming and navigation into the vehicle.
The 9-inch touchscreen gives the Mazda 3 a substantially larger and more modern interface for accessing Apple CarPlay, Android Auto, music, Bluetooth and other compatible functions.
Combined with the Aerpro AKMZ4, the Pioneer head unit can be installed using vehicle-specific components designed for the Mazda 3 BL dashboard and factory wiring.
Aerpro AKMZ4 Mazda 3 Installation Kit
The Aerpro AKMZ4 is a vehicle-specific installation kit designed for Mazda 3 BL 2009-2013 non-amplified vehicles.
The kit provides the fascia and integration components required to install a universal 9-inch trapezoid-shaped aftermarket head unit while retaining important factory functions such as steering wheel controls where equipped.
Aerpro AKMZ4 Kit Includes
- Black vehicle-specific fascia kit
- Steering wheel control interface harness
- Steering wheel control patch lead
- Antenna adaptor
The vehicle-specific fascia is designed to provide a clean and integrated appearance within the Mazda 3 dashboard, while the supplied wiring and steering wheel control interfaces assist with connecting the Pioneer head unit to the vehicle.
Mazda 3 Factory Feature Retention
The correct installation kit is important when upgrading a Mazda 3 because factory vehicle functions need to be considered alongside the aftermarket head unit.
Steering Wheel Controls
The Aerpro AKMZ4 retains steering wheel controls where equipped, allowing compatible factory audio controls to continue operating with the Pioneer DMH-AP6850BT.
The supplied steering wheel control interface and patch lead are designed to simplify integration between the Mazda 3 factory controls and the aftermarket Pioneer head unit.
Factory Reverse Camera
The AKMZ4 does not retain a factory reverse camera. However, the Pioneer DMH-AP6850BT features camera inputs for compatible aftermarket reverse camera installations.
Factory Amplifier
The AKMZ4 is specifically designed for non-amplified Mazda 3 BL vehicles. It does not provide factory amplifier retention and should not be used for factory-amplified configurations without confirming compatibility.
Factory AUX & USB
Factory AUX and USB inputs are not retained through the AKMZ4 installation kit.
Vehicle Menu
Factory vehicle menu functionality is not retained through the AKMZ4.
Actual feature retention can vary depending on the exact Mazda 3 specification and head unit configuration.
Pioneer DMH-AP6850BT 9-Inch Touchscreen
The Pioneer DMH-AP6850BT features a 9-inch WSVGA capacitive touchscreen with a 1,024 x 600 resolution.
The large touchscreen provides a clear and responsive interface for Apple CarPlay, Android Auto, navigation, music, phone calls, Bluetooth and compatible connected applications.
For Mazda 3 owners searching for a 9-inch Mazda 3 touchscreen stereo, the DMH-AP6850BT provides a substantial upgrade over the factory radio interface.
Wireless Apple CarPlay
The Pioneer DMH-AP6850BT provides wireless Apple CarPlay, allowing compatible iPhones to connect without requiring a USB cable.
Apple CarPlay provides access to supported navigation, music, phone and messaging applications directly through the Pioneer touchscreen.
Compatible applications can include Apple Maps, Google Maps, Waze, Spotify, Apple Music and other supported services.
Wired Apple CarPlay is also supported for users who prefer a direct USB connection.
Wireless Android Auto
Compatible Android smartphones can connect using wireless Android Auto or through a wired connection.
Android Auto provides access to compatible navigation, music, calls, messages and supported applications through the 9-inch Pioneer touchscreen.
For customers searching for a Mazda 3 Android Auto head unit, the DMH-AP6850BT provides a modern solution with both wireless and wired connectivity.
Bluetooth 5.4
Built-in Bluetooth 5.4 provides wireless connectivity for compatible smartphones.
Use Bluetooth for hands-free phone calls and wireless audio streaming while keeping your smartphone connected to the Pioneer head unit.
Dual AHD Camera Inputs
The DMH-AP6850BT features dual AHD 1.0 camera inputs, providing additional camera connectivity for compatible installations.
Although the AKMZ4 does not retain a factory reverse camera, a compatible aftermarket reverse camera can be connected directly to the Pioneer head unit.
Premium Pioneer Audio Processing
The DMH-AP6850BT incorporates advanced Pioneer audio processing, making it an excellent foundation for a Mazda 3 sound system upgrade.
Audio features include:
- 50W x 4-channel MOSFET amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- High-pass filter
- Low-pass filter
- Subwoofer control
- 3 x RCA pre-outs
- 4V pre-out voltage
The 4V RCA pre-outs provide a strong platform for future upgrades including aftermarket amplifiers, speakers and subwoofers.
OEM Integration & Steering Wheel Control Setup
The Aerpro AKMZ4 does not use Pioneer CAN Bus features for this installation. Instead, the kit includes a dedicated steering wheel control adapter.
During Pioneer setup, the steering wheel control configuration should be selected through:
Menu → Steering Wheel Control → With Adapter
rather than selecting CAN Bus Adapter during initial setup.
This configuration allows the Pioneer DMH-AP6850BT to work with the Aerpro steering wheel control interface supplied with the AKMZ4.
Full HD USB Playback
The Pioneer DMH-AP6850BT supports Full HD video playback via USB and provides USB connectivity for compatible devices and media.
USB connectivity can also be used for wired smartphone integration and compatible media playback, although the Mazda 3 factory USB connection is not retained through the AKMZ4.
Pioneer DMH-AP6850BT Key Features
- 9-inch WSVGA capacitive touchscreen
- 1,024 x 600 resolution
- Wired Apple CarPlay
- Wireless Apple CarPlay
- Wired Android Auto
- Wireless Android Auto
- Bluetooth 5.4
- WebLink
- WebLink Cast
- WebLink Browser for Android
- Dual AHD 1.0 camera inputs
- Full HD USB video playback
- OEM CAN Bus support on compatible configurations
- Pioneer shortcut keys
- Ultra-shallow chassis
- 50W x 4 MOSFET amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- High-pass and low-pass filters
- Subwoofer control
- 3 x RCA 4V pre-outs
- AM/FM tuner
- RDS
- Best Station Memory
Aerpro AKMZ4 Features
- Designed for Mazda 3 BL 2009-2013
- Suitable for non-amplified vehicles
- Black vehicle-specific fascia
- 9-inch trapezoid radio installation design
- Steering wheel control interface included
- Steering wheel control patch lead included
- Steering wheel controls retained where equipped
- Antenna adaptor included
- Factory reverse camera not retained
- Factory AUX not retained
- Factory USB not retained
- Factory amplifier not supported
- Vehicle menu not retained
Compatible Mazda 3 Models
The Aerpro AKMZ4 is designed to suit:
- Mazda 3 BL 2009-2013
The kit is specifically intended for non-amplified Mazda 3 vehicles. Vehicle equipment can vary, so compatibility should be confirmed before installation.
Compatible Head Units
The AKMZ4 is designed for universal 9-inch trapezoid-shaped aftermarket radios and is compatible with a range of head units including:
- Alpine: INE-AW409S
- Kenwood: DMX80AXS
- Pioneer: DMH-AP6650BT and DMH-AP6850BT
- Aerpro: AM9X
- Various Android head units
The Pioneer DMH-AP6850BT is the head unit supplied as part of this complete package.
Important Installation Information
The Aerpro AKMZ4 is designed for universal 9-inch trapezoid-shaped aftermarket radios. It will not suit standard DIN or double-DIN sized radios.
The Pioneer DMH-AP6850BT is supplied as the head unit in this package, while the AKMZ4 provides the Mazda 3-specific installation components.
The head unit ISO harness is not included with the AKMZ4 kit. An Aerpro APP8 Head Unit Secondary ISO Harness is recommended and is sold separately.
The AKMZ4 does not support Pioneer CAN Bus features and instead uses its supplied steering wheel control adapter. Feature retention is dependent on the vehicle specification and head unit configuration.
Professional Mazda 3 Head Unit Installation
Installing a modern 9-inch head unit into a Mazda 3 involves more than simply fitting the screen into the dashboard. Correct fascia alignment, wiring, steering wheel control configuration, antenna connection and head unit setup all need to be considered.
Using the correct Aerpro AKMZ4 vehicle-specific installation kit provides the appropriate fascia and integration hardware for compatible Mazda 3 BL vehicles, helping achieve a clean and professional installation.
Strathfield Car Radios can professionally install and configure Mazda 3 head units, Apple CarPlay stereos, Android Auto head units, reverse cameras and complete car audio upgrades.
Mazda 3 Pioneer Stereo Upgrade
The Pioneer DMH-AP6850BT + Aerpro AKMZ4 provides a complete 9-inch touchscreen stereo upgrade for compatible Mazda 3 BL 2009-2013 non-amplified vehicles.
With wireless Apple CarPlay, wireless Android Auto, Bluetooth 5.4, a 9-inch touchscreen, dual camera inputs, Full HD USB playback and advanced Pioneer DSP audio processing, the DMH-AP6850BT brings modern connectivity and audio technology to the Mazda 3.
The Aerpro AKMZ4 provides the vehicle-specific installation components required to integrate the Pioneer head unit into the Mazda 3 dashboard while retaining steering wheel controls where equipped.
If you're searching for a Mazda 3 head unit upgrade, Mazda 3 Apple CarPlay, Mazda 3 Android Auto, Mazda 3 stereo replacement, Mazda 3 Pioneer head unit, Mazda 3 9-inch stereo, Mazda 3 radio upgrade or Mazda 3 aftermarket head unit, this Pioneer and Aerpro combination provides a purpose-built touchscreen upgrade solution.
Product Compatibility
Vehicle: Mazda 3
Model: BL
Model Years: 2009-2013
Factory Audio: Non-amplified
Steering Wheel Controls: Retained where equipped
Head Unit: Pioneer DMH-AP6850BT
Aerpro Installation Kit: AKMZ4
Screen: 9-inch WSVGA capacitive touchscreen
Apple CarPlay: Wired / Wireless
Android Auto: Wired / Wireless
Bluetooth: Version 5.4
Compatibility and feature retention can vary according to vehicle specification and factory equipment. Please confirm compatibility before purchase.
