Description

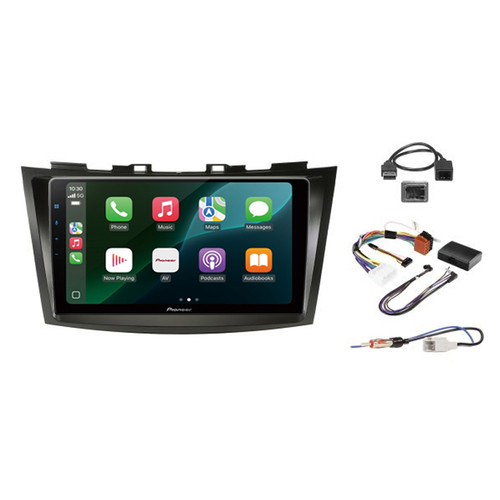

Aerpro AKSZ4 + Pioneer DMH-AP6850BT 9" Head Unit Upgrade – Suzuki Swift 2011-2017
The Aerpro AKSZ4 9" Installation Kit combined with the Pioneer DMH-AP6850BT provides a premium touchscreen head unit upgrade for the Suzuki Swift 2011-2017. This vehicle-specific installation solution is designed to replace the factory stereo with a modern Pioneer touchscreen while retaining important factory functions including steering wheel controls.
The Pioneer DMH-AP6850BT features a large 9" WSVGA capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, Bluetooth 5.4, WebLink smartphone connectivity, Full HD USB video playback, dual AHD camera inputs and advanced Pioneer DSP audio processing.
When paired with the Aerpro AKSZ4, the Pioneer DMH-AP6850BT provides a clean and integrated Suzuki Swift head unit upgrade for compatible 2011-2017 Swift models. The Aerpro installation kit includes the vehicle-specific fascia, steering wheel control interface, SWC patch lead, antenna adaptor and factory USB retention harness required to simplify the installation.
Compatible Suzuki Vehicle
- Suzuki Swift: 2011-2017
Pioneer DMH-AP6850BT Features
- 9" WSVGA 1024 x 600 capacitive touchscreen display
- Perfect-fit style installation when paired with the Aerpro AKSZ4 vehicle-specific fascia
- Certified Apple CarPlay – wired or wireless
- Certified Android Auto – wired or wireless
- Bluetooth 5.4
- WebLink connectivity – wired or wireless
- WebLink Cast smartphone mirroring for iOS and Android
- WebLink Browser for Android
- Full HD video playback via USB
- Dual AHD 1.0 camera inputs
- OEM CAN Bus support
- Pioneer shortcut keys for quick access to key functions
- Ultra-shallow chassis design
Pioneer Audio Features
- MOSFET 50W x 4 channel amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- High-pass filter and low-pass filter
- Subwoofer control
- 3 x RCA pre-outs with 4V output
- AM/FM tuner with RDS
- Best Station Memory (BSM)
Aerpro AKSZ4 Installation Kit
The Aerpro AKSZ4 is specifically designed to simplify the installation of a 9" trapezoid-shaped aftermarket head unit into the Suzuki Swift 2011-2017. The kit provides the vehicle-specific fascia and wiring components required for a clean and integrated aftermarket head unit installation while retaining key factory functions.
Kit Inclusions
- Black vehicle-specific fascia kit
- Steering wheel control interface harness
- SWC patch lead
- Antenna adaptor
- Factory USB retention harness
Vehicle Feature Retention
- Steering Wheel Controls: Yes, including phone button
- Factory Reverse Camera: No
- AUX Input: No
- USB Input: Yes
- Parking Tones: No
- Factory Amplifier: No
- Vehicle Menu: No
Important Information
- This installation kit is designed for universal trapezoid-shaped radios and will not suit standard DIN or double DIN sized radios.
- The Aerpro AKSZ4 is designed for compatible 9" trapezoid-shaped head units including the Pioneer DMH-AP6650BT.
- The kit does not support Pioneer CAN Bus features and instead uses a steering wheel control adapter.
- When setting up the Pioneer head unit, instead of selecting CAN Bus Adapter on boot-up, go to Menu > Steering Wheel Control > With Adapter.
- Feature retention is radio dependent.
- Head unit ISO harness is not included with the Aerpro installation kit. An Aerpro APP8 Head Unit Secondary ISO Harness is recommended and sold separately.
Why Upgrade Your Suzuki Swift to a Pioneer Apple CarPlay Head Unit?
The Pioneer DMH-AP6850BT provides a major technology upgrade for the Suzuki Swift, replacing the factory stereo with a large touchscreen and modern smartphone connectivity. With wireless Apple CarPlay and Android Auto, compatible smartphones can connect to the Pioneer system for navigation, music, phone calls, messages and supported applications.
This combination is an ideal solution for customers searching for a Suzuki Swift Apple CarPlay upgrade, Suzuki Swift Android Auto head unit, Suzuki Swift touchscreen stereo, Suzuki Swift aftermarket head unit or Suzuki Swift stereo upgrade.
The Pioneer also delivers advanced audio processing with a 48-bit dual-core DSP, manual time alignment, 3-way network mode, high-pass and low-pass filters, subwoofer control and 4V RCA pre-outs, providing an excellent foundation for a Suzuki Swift car audio upgrade.
Suzuki Swift Head Unit Upgrade & Installation
The Pioneer DMH-AP6850BT and Aerpro AKSZ4 combination provides a modern touchscreen upgrade for Suzuki Swift vehicles from 2011-2017. The vehicle-specific Aerpro fascia is designed to provide a clean integrated appearance while the included steering wheel control interface, antenna adaptor and USB retention harness simplify the installation.
Professional installation is recommended to ensure the Pioneer head unit, Aerpro installation kit, steering wheel controls and retained vehicle functions are correctly installed and configured for the individual Suzuki Swift.
Compatible Head Units
- Pioneer: DMH-AP6850BT
- Alpine: INE-AW409S
- Kenwood: DMX80AXS
- Aerpro: AM9X
- Various compatible Android head units
Note: Vehicle compatibility and retained functions can vary according to the exact Suzuki Swift model, year, factory radio and equipment level. Please confirm compatibility before purchase.
