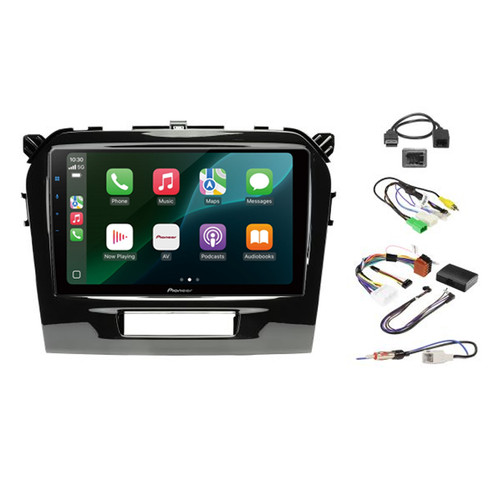

Aerpro AKSZ5 + Pioneer DMH-AP6850BT 9" Head Unit Upgrade – Suzuki Vitara 2015-On
The Aerpro AKSZ5 9" Installation Kit combined with the Pioneer DMH-AP6850BT provides a premium touchscreen head unit upgrade for the Suzuki Vitara. This vehicle-specific installation solution is designed to replace the factory radio with a modern Pioneer touchscreen while retaining important factory functions including steering wheel controls, factory reverse camera and USB connectivity where equipped.
The Pioneer DMH-AP6850BT features a large 9" WSVGA capacitive touchscreen, wireless and wired Apple CarPlay and Android Auto, Bluetooth 5.4, WebLink smartphone connectivity, Full HD USB video playback, dual AHD camera inputs and advanced Pioneer DSP audio processing.
When paired with the Aerpro AKSZ5, the Pioneer DMH-AP6850BT provides a clean and integrated Suzuki Vitara head unit upgrade for 2015-on Vitara models. The Aerpro installation kit includes the vehicle-specific gloss black fascia, steering wheel control interface, SWC patch lead, antenna adaptor, camera retention adaptor and factory USB retention harness required to simplify installation.
Compatible Suzuki Vehicle
- Suzuki Vitara: 2015-on
Pioneer DMH-AP6850BT Features
- 9" WSVGA 1024 x 600 capacitive touchscreen display
- Large-screen installation for a modern Suzuki Vitara interior
- Certified Apple CarPlay – wired or wireless
- Certified Android Auto – wired or wireless
- Bluetooth 5.4
- WebLink connectivity – wired or wireless
- WebLink Cast smartphone mirroring for iOS and Android
- WebLink Browser for Android
- Full HD video playback via USB
- Dual AHD 1.0 camera inputs
- OEM CAN Bus support
- Pioneer shortcut keys for quick access to key functions
- Ultra-shallow chassis design
Pioneer Audio Features
- MOSFET 50W x 4 channel amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- High-pass filter and low-pass filter
- Subwoofer control
- 3 x RCA pre-outs with 4V output
- AM/FM tuner with RDS
- Best Station Memory (BSM)
Aerpro AKSZ5 Installation Kit
The Aerpro AKSZ5 is designed to make the installation of a compatible 9" trapezoid-shaped aftermarket head unit into the Suzuki Vitara easier while retaining important vehicle functions. The kit provides the vehicle-specific fascia and wiring components required for a clean and integrated aftermarket head unit installation.
Kit Inclusions
- Gloss black vehicle-specific fascia kit
- Steering wheel control interface harness
- SWC patch lead
- Antenna adaptor
- Camera retention adaptor
- Factory USB retention harness
Vehicle Feature Retention
- Steering Wheel Controls: Yes, including phone button
- Factory Reverse Camera: Yes, if equipped
- AUX Input: No
- USB Input: Yes
- Parking Tones: N/A
- Factory Amplifier: No
- Vehicle Menu: No
Important Information
- This installation kit is designed for universal trapezoid-shaped radios and will not suit standard DIN or double DIN sized radios.
- The kit is designed for compatible 9" trapezoid-shaped head units including the Pioneer DMH-AP6650BT.
- The kit does not support Pioneer CAN Bus features and instead uses a steering wheel control adapter.
- When setting up a compatible Pioneer head unit, instead of selecting CAN Bus Adapter on boot-up, go to Menu > Steering Wheel Control > With Adapter.
- Feature retention is radio dependent.
- Head unit ISO harness is not included with the Aerpro installation kit. An Aerpro APP8 Head Unit Secondary ISO Harness is recommended and sold separately.
Why Upgrade Your Suzuki Vitara to a Pioneer Apple CarPlay Head Unit?
The Pioneer DMH-AP6850BT provides a major technology upgrade for the Suzuki Vitara, replacing the factory stereo with a large touchscreen and modern smartphone connectivity. With wireless Apple CarPlay and Android Auto, compatible smartphones can connect to the Pioneer system for navigation, music, phone calls, messages and supported applications.
This combination is an ideal solution for customers searching for a Suzuki Vitara Apple CarPlay upgrade, Suzuki Vitara Android Auto head unit, Suzuki Vitara touchscreen stereo, Suzuki Vitara aftermarket head unit or Suzuki Vitara stereo upgrade.
The Pioneer also delivers advanced audio processing with a 48-bit dual-core DSP, manual time alignment, 3-way network mode, high-pass and low-pass filters, subwoofer control and 4V RCA pre-outs, providing an excellent foundation for a Suzuki Vitara car audio upgrade.
Suzuki Vitara Head Unit Upgrade & Installation
The Pioneer DMH-AP6850BT and Aerpro AKSZ5 combination provides a modern touchscreen upgrade for the Suzuki Vitara. The vehicle-specific gloss black Aerpro fascia is designed to provide a clean integrated appearance while the included steering wheel control interface, camera retention adaptor and factory USB retention harness simplify the installation.
Professional installation is recommended to ensure the Pioneer head unit, Aerpro installation kit, steering wheel controls, factory reverse camera and retained vehicle functions are correctly configured for the individual Suzuki Vitara.
Compatible Head Units
- Pioneer: DMH-AP6850BT
- Alpine: INE-AW409S
- Kenwood: DMX80AXS
- Aerpro: AM9X
- Various compatible Android head units
Note: Vehicle compatibility and retained functions can vary according to the exact Suzuki Vitara model, year, factory radio and equipment level. Please confirm compatibility before purchase.
