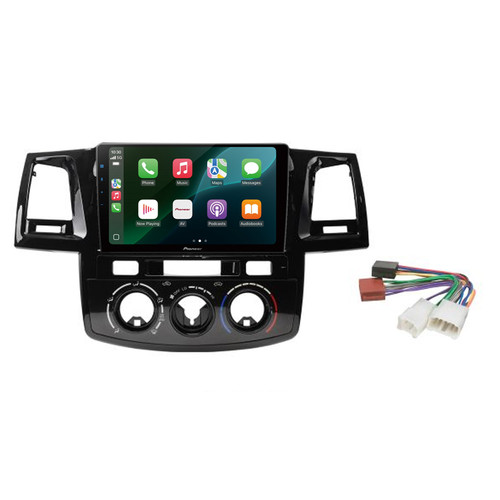

Pioneer DMH-AP6850BT 9-Inch Apple CarPlay & Android Auto Head Unit + Aerpro AKTO49 Toyota Hilux 2005-2011
Upgrade your Toyota Hilux 2005-2011 with the Pioneer DMH-AP6850BT 9-inch touchscreen head unit and Aerpro AKTO49 vehicle-specific installation kit. This combination provides a modern touchscreen stereo upgrade for Toyota Hilux models without factory steering wheel controls, bringing wireless Apple CarPlay, wireless Android Auto, Bluetooth 5.4 and advanced Pioneer audio technology to an older Hilux.
The Pioneer DMH-AP6850BT features a large 9-inch WSVGA capacitive touchscreen with 1,024 x 600 resolution, wired and wireless Apple CarPlay, wired and wireless Android Auto, Bluetooth 5.4, WebLink, dual AHD 1.0 camera inputs, Full HD USB playback and premium 48-bit dual-core DSP.
The Aerpro AKTO49 provides the vehicle-specific gloss black fascia and vehicle harness required to install a compatible 9-inch trapezoid-shaped aftermarket head unit into the Toyota Hilux dashboard.
This package is an ideal solution for customers searching for a Toyota Hilux head unit upgrade, Toyota Hilux Apple CarPlay, Toyota Hilux Android Auto, Toyota Hilux stereo upgrade, Toyota Hilux Pioneer head unit, Toyota Hilux 9-inch head unit, Toyota Hilux radio replacement or Toyota Hilux aftermarket stereo.
Upgrade Your Toyota Hilux Factory Stereo
If you're looking to replace the original radio in your Toyota Hilux with a modern touchscreen head unit, the Pioneer DMH-AP6850BT provides the latest smartphone connectivity and audio features while the Aerpro AKTO49 provides the vehicle-specific installation components needed to achieve a clean and integrated installation.
The large 9-inch Pioneer touchscreen provides a significantly larger and more modern interface for compatible navigation, music, phone calls and smartphone applications. Wireless Apple CarPlay and Android Auto allow compatible smartphones to connect without requiring a USB cable, while wired connectivity is also supported.
The result is a modern Toyota Hilux stereo upgrade designed specifically for earlier Hilux models without factory steering wheel controls.
Aerpro AKTO49 Toyota Hilux Installation Kit
The Aerpro AKTO49 is a vehicle-specific 9-inch installation kit designed for Toyota Hilux 2005-2011 models without steering wheel controls. The kit is designed to suit universal 9-inch trapezoid-shaped aftermarket radios and provides the fascia and vehicle harness required for the installation.
Aerpro AKTO49 Kit Includes
- Gloss black fascia kit
- Vehicle harness
The gloss black vehicle-specific fascia provides a clean, integrated appearance within the Toyota Hilux dashboard while the supplied vehicle harness assists with connecting the aftermarket Pioneer head unit to the vehicle wiring.
Toyota Hilux Factory Feature Retention
The Aerpro AKTO49 is designed specifically for Toyota Hilux models without steering wheel controls. Due to the vehicle configuration supported by this kit, factory feature retention is limited.
Steering Wheel Controls
Steering wheel controls are not supported because this kit is designed for Toyota Hilux vehicles without factory steering wheel controls.
Factory Reverse Camera
Factory reverse camera retention is not supported through the AKTO49 installation configuration.
AUX Input
Factory AUX input is not retained through the AKTO49 installation configuration.
Factory USB
Factory USB retention is not supported through this installation kit.
Factory Amplifier
The Aerpro AKTO49 does not support factory amplifier integration.
Vehicle Menu
The factory vehicle menu is not retained through the AKTO49 installation configuration.
Feature retention is dependent on the vehicle specification and head unit configuration.
Pioneer DMH-AP6850BT 9-Inch Touchscreen
The Pioneer DMH-AP6850BT features a 9-inch WSVGA capacitive touchscreen with 1,024 x 600 resolution, providing a large and responsive interface for smartphone connectivity, music, phone calls, navigation and compatible applications.
The flat-screen design provides a modern appearance while Pioneer's shortcut keys allow quick access to commonly used features and controls.
Wireless Apple CarPlay for Toyota Hilux
Connect a compatible iPhone wirelessly and access Apple CarPlay directly through the Pioneer 9-inch touchscreen.
Apple CarPlay provides access to compatible navigation, music, phone and messaging applications through the Pioneer display. Both wired and wireless Apple CarPlay are supported by the DMH-AP6850BT.
Wireless Android Auto for Toyota Hilux
Compatible Android smartphones can connect using wireless Android Auto or through a wired connection.
Android Auto provides access to compatible navigation, music, calls, messages and supported applications through the Pioneer touchscreen, making the DMH-AP6850BT an excellent Toyota Hilux Android Auto head unit upgrade.
Bluetooth 5.4 Connectivity
The Pioneer DMH-AP6850BT features Bluetooth 5.4 for compatible smartphones, providing hands-free calling and wireless audio streaming.
Bluetooth connectivity allows compatible devices to remain connected to the Pioneer head unit while providing convenient access to calls and music.
Camera Connectivity
The Pioneer DMH-AP6850BT features dual AHD 1.0 camera inputs, providing flexibility for compatible aftermarket camera installations.
Please note that the Aerpro AKTO49 does not provide factory reverse camera retention. An appropriate compatible aftermarket camera can be installed separately where required.
Premium Pioneer Audio
The DMH-AP6850BT provides advanced audio processing and connectivity for customers looking to improve the sound system in their Toyota Hilux.
- 50W x 4-channel MOSFET amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- High-pass filter
- Low-pass filter
- Subwoofer control
- 3 x RCA pre-outs
- 4V pre-out voltage
The 4V RCA pre-outs provide a strong platform for adding aftermarket amplifiers, speakers and subwoofers as part of a complete Toyota Hilux sound system upgrade.
Full HD USB Playback
The Pioneer DMH-AP6850BT supports Full HD video playback via USB and provides USB connectivity for compatible devices and media.
As the Aerpro AKTO49 does not retain the factory USB connection, the Pioneer USB connection can be used directly for compatible media and smartphone connectivity.
Pioneer DMH-AP6850BT Key Features
- 9-inch WSVGA capacitive touchscreen
- 1,024 x 600 resolution
- Wired Apple CarPlay
- Wireless Apple CarPlay
- Wired Android Auto
- Wireless Android Auto
- Bluetooth 5.4
- WebLink
- WebLink Cast
- WebLink Browser for Android
- Dual AHD 1.0 camera inputs
- Full HD USB video playback
- OEM CAN Bus support on compatible configurations
- Pioneer shortcut keys
- Ultra-shallow chassis
- 50W x 4 MOSFET amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- HPF and LPF
- Subwoofer control
- 3 x RCA 4V pre-outs
- AM/FM tuner
- RDS
- Best Station Memory
Aerpro AKTO49 Features
- Designed for Toyota Hilux 2005-2011
- Suitable for vehicles without factory steering wheel controls
- Gloss black vehicle-specific fascia
- 9-inch trapezoid radio adaptor compatibility
- Vehicle harness included
- Compatible with Pioneer DMH-AP6850BT
- Compatible with Alpine INE-AW409S
- Compatible with Kenwood DMX80AXS
- Compatible with Aerpro AM9X
- Compatible with various Android head units
- Factory steering wheel controls not supported
- Factory reverse camera not retained
- Factory AUX not retained
- Factory USB not retained
- Factory amplifier not supported
- Factory vehicle menu not retained
Important Toyota Hilux Installation Information
The Aerpro AKTO49 is designed specifically for universal 9-inch trapezoid-shaped aftermarket radios. It is not designed for standard DIN or double-DIN head units.
The Pioneer DMH-AP6850BT is supplied as the head unit in this package and is paired with the vehicle-specific Aerpro AKTO49 installation components to create a complete Toyota Hilux head unit upgrade.
The head unit ISO harness is not included with the AKTO49 kit. An Aerpro APP8 Head Unit Secondary ISO Harness is recommended and is sold separately.
The AKTO49 does not support Pioneer CAN Bus features. Feature retention is dependent on the vehicle's factory equipment and the head unit configuration.
Professional Toyota Hilux Head Unit Installation
Installing a modern 9-inch touchscreen into an older Toyota Hilux requires the correct vehicle-specific fascia and wiring to achieve a clean and reliable installation.
The Aerpro AKTO49 provides the fascia and vehicle harness required to integrate a compatible aftermarket head unit into the Hilux dashboard, while the Pioneer DMH-AP6850BT adds modern smartphone connectivity, touchscreen control and advanced audio features.
Strathfield Car Radios can professionally install and integrate Toyota Hilux head units, Apple CarPlay stereos, Android Auto head units, reverse cameras and complete car audio upgrades.
Toyota Hilux Pioneer Stereo Upgrade
The Pioneer DMH-AP6850BT + Aerpro AKTO49 provides a modern 9-inch touchscreen stereo upgrade for Toyota Hilux 2005-2011 models without factory steering wheel controls.
With wireless Apple CarPlay, wireless Android Auto, Bluetooth 5.4, a 9-inch touchscreen, dual camera inputs and advanced Pioneer DSP audio processing, the DMH-AP6850BT brings current-generation connectivity and audio technology to an earlier Toyota Hilux.
The Aerpro AKTO49 provides the vehicle-specific installation components needed to mount and connect the Pioneer head unit into the Toyota Hilux dashboard.
If you're searching for a Toyota Hilux head unit upgrade, Toyota Hilux Apple CarPlay, Toyota Hilux Android Auto, Toyota Hilux stereo replacement, Toyota Hilux Pioneer head unit, Toyota Hilux 9-inch stereo, Toyota Hilux radio upgrade or Toyota Hilux aftermarket head unit, this Pioneer and Aerpro combination provides a purpose-built upgrade solution.
Product Compatibility
- Vehicle: Toyota Hilux
- Model Years: 2005-2011
- Vehicle Configuration: Without factory steering wheel controls
- Head Unit: Pioneer DMH-AP6850BT
- Aerpro Installation Kit: AKTO49
- Screen: 9-inch WSVGA capacitive touchscreen
- Apple CarPlay: Wired / Wireless
- Android Auto: Wired / Wireless
- Bluetooth: Version 5.4
- Steering Wheel Controls: Not supported
- Factory Reverse Camera: Not retained
- Factory AUX: Not retained
- Factory USB: Not retained
- Factory Amplifier: Not supported
- Factory Vehicle Menu: Not retained
Compatibility and factory feature retention can vary according to vehicle specification and factory equipment. Please confirm compatibility before purchase.
