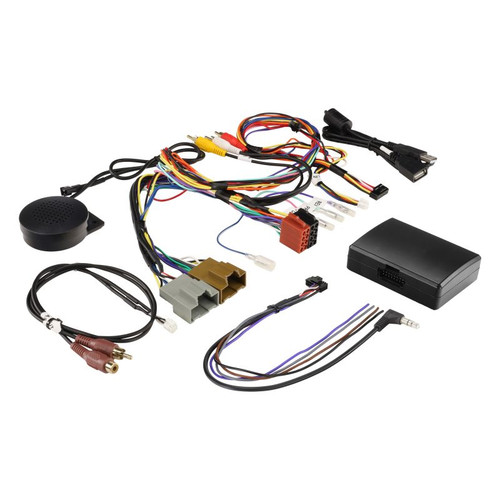

Aerpro SAGM07 Infolink Adapter Interface – Steering Wheel Controls, HVAC, Parking Sensors & Factory Reverse Camera

BMW & Holden Aftermarket Head Unit Integration Interface

Upgrade your compatible vehicle with a modern aftermarket head unit while retaining important factory functions with the Aerpro SAGM07 Infolink Adapter Interface.

The SAGM07 is designed to provide far more than basic steering wheel control retention. It allows compatible vehicle information and functions to be displayed through the replacement aftermarket head unit, including HVAC and climate control information, parking sensors, vehicle menus and factory reverse camera functionality.

The interface also provides reverse trigger, park brake, speed pulse and illumination outputs, plus amplifier remote control, making it an important component when installing a modern aftermarket stereo.

The SAGM07 is available to buy online from Strathfield Car Radios or can be supplied and professionally installed in-store as part of a complete head unit upgrade, Apple CarPlay installation, Android Auto upgrade or factory stereo replacement.

Upgrade Your Factory Radio Without Losing Important Vehicle Functions

Replacing a factory radio can affect more than just the vehicle's audio system. Modern factory head units can communicate with climate control, parking sensors, steering wheel controls and other vehicle systems.

The Aerpro SAGM07 is designed to maintain access to these supported functions when installing a compatible aftermarket head unit.

Key integration features include:

• Factory steering wheel control retention
• Phone button compatibility
• Voice assistant support
• Vehicle menu access
• HVAC and climate control visualisation
• Parking sensor information
• Factory reverse camera retention
• Rear cross traffic alert display on supported vehicles
• Reverse trigger output
• Park brake output
• Speed pulse output
• Illumination output
• Amplifier remote output
• PAL/NTSC reverse camera detection
• Selectable dipswitch configuration
• Software update capability

This makes the SAGM07 an ideal solution for a more complete vehicle-specific aftermarket stereo upgrade.

Factory Reverse Camera Retention

The Aerpro SAGM07 supports the factory reverse camera where equipped and compatible.

The interface automatically detects PAL/NTSC reverse camera input, helping simplify the installation of the replacement head unit.

On compatible vehicles, the SAGM07 can also support rear cross traffic alerts over the reverse camera display, providing additional information when reversing.

The aftermarket head unit must have a rear camera input.

Important Camera Compatibility

The SAGM07 is not compatible with high-definition cameras.

If your vehicle is equipped with a factory reverse camera, compatibility should be confirmed before ordering the interface.

HVAC & Climate Control Visualisation

The SAGM07 allows supported climate control and HVAC information to be displayed through the aftermarket head unit.

This is particularly important when replacing a factory multimedia system where climate control information or vehicle settings are integrated into the original display.

Instead of losing these functions during a stereo upgrade, the SAGM07 provides an interface between the vehicle's electronics and the new aftermarket touchscreen.

Parking Sensors & Vehicle Information

The SAGM07 provides on-screen parking sensor information and access to supported vehicle menus through the replacement head unit.

This helps retain useful factory information after upgrading to an aftermarket stereo with modern touchscreen functionality.

For customers searching for a car stereo upgrade with parking sensor retention, the correct Infolink interface can be an essential part of the installation.

Steering Wheel Controls, Phone & Voice Assistant

The SAGM07 retains compatible factory steering wheel controls when connected to a compatible aftermarket head unit.

It supports:

• Steering wheel audio controls
• Phone button
• Voice assistant button
• Compatible aftermarket SWC functionality

The aftermarket head unit must be SWC compatible, and steering wheel control functions can vary from the original OEM configuration.

Initial SWC Configuration

During the first installation, steering wheel controls may initially operate incorrectly.

If required, the SAGM07 allows the SWC mode to be changed by pressing the Track Down button five times quickly. The interface will then switch to the correct steering wheel control configuration.

This makes correct setup particularly important during professional installation.

Apple CarPlay & Android Auto Head Unit Upgrade

The SAGM07 can be paired with a compatible aftermarket Pioneer, Kenwood, Alpine, JVC, Sony or other SWC-compatible head unit.

This allows your vehicle's factory radio to be replaced with a modern touchscreen system featuring functions such as:

• Apple CarPlay
• Android Auto
• Wireless smartphone connectivity
• Bluetooth hands-free calling
• Bluetooth audio streaming
• Smartphone navigation
• DAB+ digital radio where supported
• Touchscreen multimedia
• Advanced audio controls

The SAGM07 handles the vehicle integration side of the installation, helping the new head unit work with supported factory systems.

Vehicle Integration Outputs

The SAGM07 provides several outputs required for aftermarket head unit installation:

• Reverse Trigger: Yes – Purple/White
• Park Brake: Yes – Green
• Speed Pulse: Yes – Pink
• Illumination: Yes
• Amplifier Remote: Yes
• Telephone Mute: No

These outputs provide additional integration between the aftermarket head unit and vehicle electrical systems.

Selectable Dipswitch Configuration

The SAGM07 features selectable dipswitch settings for vehicle and head unit configuration.

Correct configuration helps ensure the interface operates correctly with the selected vehicle and aftermarket stereo.

The interface is also software updateable, helping maintain compatibility and long-term performance.

Supported interface languages include:

• English
• German
• Spanish
• Italian
• French

Important Installation Information

The SAGM07 has specific installation requirements that should be followed carefully.

• Aftermarket head unit must be SWC compatible
• Steering wheel control functions may vary from OEM functions
• Aftermarket head unit must have a rear camera input
• Not compatible with high-definition cameras
• Factory reverse camera retention is supported where equipped and compatible
• Rear cross traffic alert display is model dependent
• Do not plug the LIN-EXT into the video output of the SAGM07 module
• On initial installation, SWC mode may need to be changed by pressing the Track Down button five times quickly

Always confirm the correct interface using the Aerpro Vehicle Selector before ordering.

Professional Head Unit Installation at Strathfield Car Radios

The correct integration equipment is critical when replacing a factory stereo. Simply installing an aftermarket head unit can result in the loss of steering wheel controls, climate information, parking sensor displays or the factory reverse camera.

Strathfield Car Radios can supply the Aerpro SAGM07 together with a compatible aftermarket head unit and the other components required for a complete installation.

Our professional installation service is suitable for customers looking for:

• Aftermarket head unit installation
• Apple CarPlay installation
• Android Auto installation
• Factory stereo replacement
• Steering wheel control retention
• Factory reverse camera retention
• HVAC integration
• Parking sensor retention
• Vehicle-specific car audio upgrades
• Professional car audio installation in Sydney

Buy the Aerpro SAGM07 online from Strathfield Car Radios or visit us in-store for professional installation.

Aerpro SAGM07 Specifications

Interface

• Interface Type: Infolink
• Patch Lead Type: SW
• Phone Button Compatibility: Yes
• Voice Assistant Button Support: Yes
• OEM Amplifier Retention: No
• OEM Reverse Camera Retention: Yes

Outputs

• Reverse Trigger: Yes – Purple/White
• Park Brake: Yes – Green
• Speed Pulse: Yes – Pink
• Illumination: Yes
• Amplifier Remote: Yes
• Telephone Mute: No

Vehicle Integration

• Steering wheel control retention
• Vehicle menu access
• HVAC visualisation
• Climate control information
• Parking sensor display
• Factory reverse camera retention
• PAL/NTSC camera detection
• Rear cross traffic alert display on supported vehicles
• Selectable dipswitch configuration
• Multi-language support
• Software update capability

Why Choose Strathfield Car Radios?

At Strathfield Car Radios, we specialise in aftermarket head unit upgrades, Apple CarPlay, Android Auto, steering wheel control integration, reverse camera retention and vehicle-specific car audio installation.

The Aerpro SAGM07 is designed for installations where retaining factory vehicle functionality is just as important as upgrading the stereo itself.

Whether you're replacing a factory radio with a Pioneer, Kenwood, Alpine, Sony or JVC touchscreen, our team can help match the correct integration interface and complete the installation correctly.

Buy online from Strathfield Car Radios or visit our Sydney store for professional aftermarket head unit installation.

Aerpro SAGM07 – Infolink Adapter Interface
