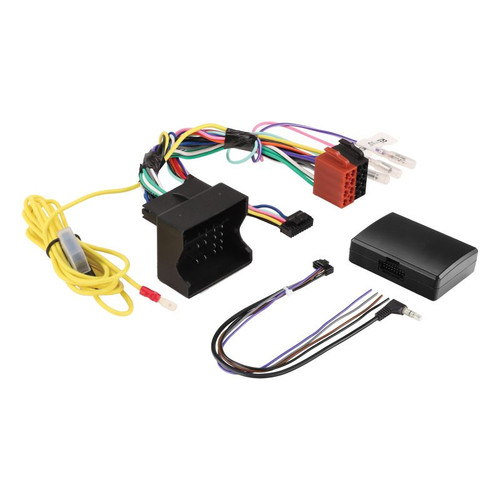

The Aerpro SWBM7C Steering Wheel Control Interface (SWC) allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls. Engineered to suit various BMW and Mini models without iDrive or OEM Amplified Systems, the steering wheel control interface includes a harness that is fitted with a vehicle specific plug designed to connect directly into the existing wiring in the vehicle with ease, no cutting of the factory wiring harness in the vehicle is required. Installation of the aftermarket headunit is simplified even further when paired with the optional Aerpro APP8 Headunit Secondary ISO Harness, which connects between the aftermarket headunit and the Aerpro Steering Wheel Control Interface.
Please Note:
Steering Wheel Control Interfaces vary between models, to find the correct part for your vehicle use the Aerpro Vehicle Selector.
Aftermarket headunit must be SWC compatible and Steering Wheel Control Functions may vary from the OEM Functions.
Does not retain factory tones such as oil/washer fluid level, door open and seat belt warnings.
Not suitable for vehicles with iDrive or OEM amplified systems.
Specification
INTERFACE TYPE: CANBUS
PATCH LEAD TYPE: SW
PHONE BUTTON COMPATIBILITY: YES
VOICE ASSISTANT SUPPORT AVAILABLE: YES
If your steering wheel control does not have a Voice Assistant button, the answer button will function as phone support instead
Aftermarket headunit and phone must also support Voice Assistant feature for this feature to work
OUTPUTS:
REVERSE TRIGGER: YES (PURPLE/WHITE)
PARK BRAKE: YES (LIGHT GREEN)
SPEED PULSE: YES (PINK)
ILLUMINATION: NO
AMP REMOTE: NO
OTHER RETENTION:
OEM AMPLIFIED SYSTEM: NO
Aftermarket headunit must be SWC compatible.
Does not retain factory tones such as oil/washer fluid level, door open and seat belt warnings.
Not suitable for vehicles with iDrive or OEM amplified systems.
Custom button remapping available, requires USB-C cable (sold separately) click here for remapping instructions
BMW 1 Series 2004-2011
BMW 3 Series 2005-2012 E90
BMW 5 Series 2004-2010 E60, E61
BMW Z4 2009-2016 E89
Mini Cooper 2007-2014 R56
Features
Allows you to upgrade to an aftermarket headunit whilst maintaining use of your factory steering wheel controls
Increases driver safety by allowing you to keep your hands on the steering wheel and eyes on the road
Supports OEM Phone Button when connected to compatible aftermarket bluetooth headunits
Not suitable for vehicles with iDrive or OEM amplified systems.
Fitted with a vehicle specific plug, no cutting of wires required
Optional button remapping available to customise your steering control button configuration (requires programming)
Recommended to be installed with an Aerpro APP8 Headunit Secondary ISO Harness (sold separately)
