Description

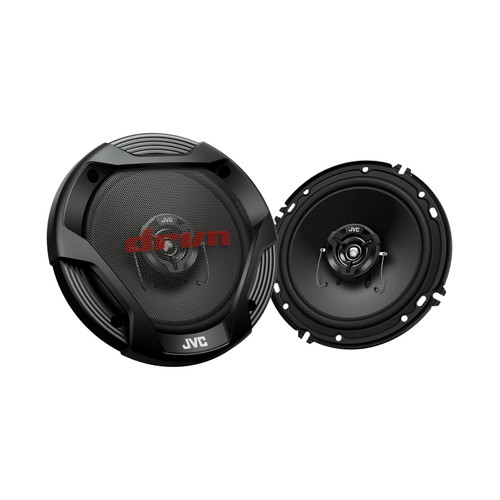

JVC drvn DR Series CS-DR622 6.5" 2-Way Coaxial Speakers
Product Information
Upgrade your factory audio system with the JVC drvn DR Series CS-DR622 6.5" 2-Way Coaxial Speakers. Designed to deliver improved sound quality, enhanced clarity, and greater musical detail, the CS-DR622 is an excellent replacement for factory-installed speakers while maintaining easy fitment in a wide variety of vehicles.
Featuring a durable polypropylene woofer cone and a balanced dome tweeter, the CS-DR622 produces rich midrange frequencies, clean vocals, and crisp high-frequency detail. The integrated Horn Ring Sound Enhancer improves upper midrange and treble performance, helping create a more natural and lifelike listening experience across all music genres.
The Hybrid Surround design combines rubber-coated cloth materials to maximise cone movement and efficiency, allowing the speaker to respond accurately to audio signals while maintaining long-term durability. A compact tweeter cover minimises interference with woofer cone operation, resulting in cleaner sound reproduction and improved overall performance.
With 300 Watts peak power handling and 50 Watts RMS, the CS-DR622 is capable of delivering powerful, dynamic sound from both factory head units and aftermarket audio systems. Its shallow mounting depth makes installation simple while maintaining compatibility with a broad range of vehicles.
Key Features & Benefits
- 6.5" (16cm) 2-way coaxial speaker system
- Ideal factory speaker replacement upgrade
- 300 Watts peak power handling
- 50 Watts RMS continuous power handling
- Polypropylene woofer cone for accurate midrange response
- Balanced dome tweeter for detailed high-frequency reproduction
- Neodymium tweeter magnet for enhanced efficiency and clarity
- Horn Ring Sound Enhancer for improved upper-frequency performance
- Hybrid Surround design for greater cone control and durability
- Compact tweeter cover reduces interference with woofer movement
- High sensitivity design for strong performance with factory radios
- Suitable for OEM and aftermarket audio systems
Key Product Specifications
Speaker Configuration
- Speaker Type: 2-Way Coaxial
- Woofer Size: 6.5" (16cm)
- Woofer Cone Material: Polypropylene
- Surround Material: Hybrid Surround (Rubber Coated Cloth)
- Woofer Magnet: Ferrite
Tweeter
- Tweeter Size: 1" (2.5cm)
- Tweeter Type: Balanced Dome
- Tweeter Diaphragm: Poly-Ether Imide
- Tweeter Magnet: Neodymium
Performance
- Peak Power Handling: 300 Watts
- RMS Power Handling: 50 Watts
- Impedance: 4 Ohms
- Sensitivity: 88dB (1W/1m)
- Frequency Response: 76Hz – 24kHz
Physical Specifications
- Mounting Depth: 44mm (1-3/4")
- Speaker Weight (Without Grille): 0.57kg
- Speaker Weight (With Grille): 0.64kg
- Magnet Weight: 190g
What's Included
- 2 x JVC drvn DR Series CS-DR622 6.5" Coaxial Speakers
- Speaker Grilles
- Mounting Hardware
- Installation Documentation
Ideal Installation Applications
The JVC CS-DR622 speakers are ideal for:
- Factory speaker replacement upgrades
- Front and rear door speaker installations
- Passenger cars, SUVs and 4WDs
- Daily driver sound system improvements
- OEM radio upgrades
- Entry-level aftermarket audio systems
- Vehicles requiring shallow mounting depth speakers
Why Choose the JVC CS-DR622?
The JVC CS-DR622 offers a significant upgrade over factory speakers, delivering cleaner vocals, improved detail, and stronger overall audio performance. Featuring a polypropylene woofer, balanced dome tweeter, Horn Ring Sound Enhancer, and Hybrid Surround technology, these speakers are engineered to provide excellent sound quality and long-lasting reliability.
Whether paired with a factory head unit or an aftermarket receiver, the CS-DR622 delivers impressive performance, making it an ideal choice for drivers seeking a simple and affordable audio upgrade.
