Description

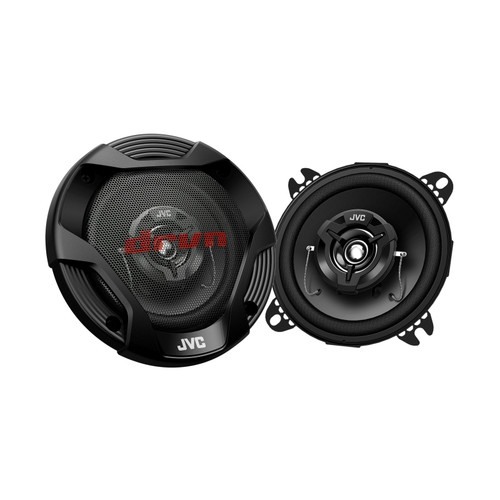

drvn DR Series CS-DR422 4" 2-Way Coaxial Speakers
Product Information
Upgrade your factory audio system with the drvn DR Series CS-DR422 4" 2-Way Coaxial Speakers. Designed as a direct replacement for factory-installed speakers, the CS-DR422 delivers improved sound quality, greater clarity, and enhanced musical detail while maintaining easy installation in a wide range of vehicles.
Featuring a lightweight polypropylene woofer cone combined with a balanced dome tweeter, the CS-DR422 produces smooth midrange performance, crisp highs, and a more engaging listening experience compared to standard OEM speakers. The integrated Horn Ring Sound Enhancer helps improve upper midrange and high-frequency response, creating a more natural and lifelike sound stage.
The Hybrid Surround design utilises a rubber-coated cloth surround that increases cone mobility and efficiency, allowing the speaker to respond accurately to musical signals while maintaining durability over time. A compact tweeter cover design minimises interference with woofer cone movement, helping deliver cleaner and more detailed audio reproduction.
With 220 Watts peak power handling and 30 Watts RMS, the CS-DR422 is ideal for factory head units and entry-level aftermarket audio systems, making it an excellent upgrade for drivers seeking improved sound without extensive system modifications.
Key Features & Benefits
- 4" (10cm) 2-way coaxial speaker system
- Ideal factory speaker replacement upgrade
- 220 Watts peak power handling
- 30 Watts RMS continuous power handling
- Polypropylene woofer cone for accurate midrange performance
- Balanced dome tweeter for detailed high-frequency reproduction
- Neodymium tweeter magnet for improved efficiency and clarity
- Horn Ring Sound Enhancer for improved upper-frequency response
- Hybrid Surround design for increased cone control and durability
- Compact tweeter cover reduces interference with woofer performance
- High sensitivity design for excellent performance with factory radios
- Suitable for OEM and aftermarket audio systems
Key Product Specifications
Speaker Configuration
- Speaker Type: 2-Way Coaxial
- Woofer Size: 4" (10cm)
- Woofer Cone Material: Polypropylene
- Surround Material: Hybrid Surround (Rubber Coated Cloth)
- Woofer Magnet: Ferrite
Tweeter
- Tweeter Size: 1" (2.5cm)
- Tweeter Type: Balanced Dome
- Tweeter Diaphragm: Poly-Ether Imide
- Tweeter Magnet: Neodymium
Performance
- Peak Power Handling: 220 Watts
- RMS Power Handling: 30 Watts
- Impedance: 4 Ohms
- Sensitivity: 88dB (1W/1m)
- Frequency Response: 120Hz – 23kHz
Physical Specifications
- Mounting Depth: 43mm (1-11/16")
- Speaker Weight (Without Grille): 0.41kg
- Speaker Weight (With Grille): 0.47kg
- Magnet Weight: 160g
What's Included
- 2 x drvn DR Series CS-DR422 4" Coaxial Speakers
- Speaker Grilles
- Mounting Hardware
- Installation Documentation
Ideal Installation Applications
The drvn CS-DR422 speakers are ideal for:
- Factory speaker replacement upgrades
- Front or rear dash speaker locations
- Compact vehicle audio upgrades
- Daily driver sound system improvements
- OEM radio upgrades
- Entry-level aftermarket audio systems
- Vehicles requiring shallow mounting depth speakers
Why Choose the drvn CS-DR422?
The drvn CS-DR422 offers an affordable and effective solution for replacing tired factory speakers with significantly improved sound quality. Featuring a polypropylene woofer, balanced dome tweeter, and advanced Hybrid Surround technology, these speakers deliver cleaner vocals, improved detail, and greater overall musical enjoyment.
Designed for easy installation and excellent compatibility with factory audio systems, the CS-DR422 is the perfect upgrade for drivers wanting better sound without the complexity or cost of a full aftermarket audio system.
