Description

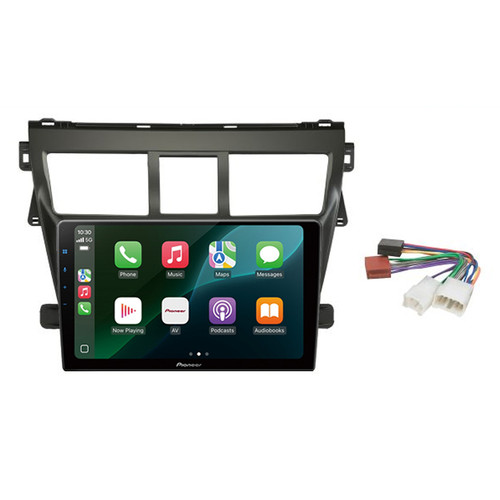

Pioneer DMH-AP6850BT 9-Inch Apple CarPlay & Android Auto Head Unit + Aerpro AKTO15 – Toyota Yaris Sedan
Upgrade your Toyota Yaris Sedan with the Pioneer DMH-AP6850BT 9-inch touchscreen head unit and Aerpro AKTO15 vehicle-specific installation kit. This combination provides a modern touchscreen stereo upgrade with wireless Apple CarPlay, wireless Android Auto, Bluetooth 5.4 and advanced Pioneer audio processing, together with the vehicle-specific fascia and wiring required to install a compatible 9-inch trapezoid-shaped aftermarket head unit.
The Aerpro AKTO15 is designed for Toyota Yaris Sedan vehicles and includes a black vehicle-specific fascia and vehicle harness to assist with the installation of a compatible aftermarket head unit.
The Pioneer DMH-AP6850BT features a 9-inch WSVGA capacitive touchscreen with 1,024 x 600 resolution, wired and wireless Apple CarPlay, wired and wireless Android Auto, Bluetooth 5.4, WebLink, dual AHD 1.0 camera inputs, Full HD USB playback and premium 48-bit dual-core DSP.
This package is ideal for customers searching for a Toyota Yaris head unit upgrade, Toyota Yaris Apple CarPlay, Toyota Yaris Android Auto, Toyota Yaris stereo upgrade, Toyota Yaris Pioneer head unit, Toyota Yaris 9-inch head unit, Toyota Yaris radio upgrade or Toyota Yaris aftermarket stereo.
Upgrade Your Toyota Yaris Factory Stereo
If you're looking to replace or upgrade the factory stereo in your Toyota Yaris Sedan, the Pioneer DMH-AP6850BT provides a large 9-inch touchscreen with modern smartphone connectivity and advanced audio features. The Aerpro AKTO15 provides the vehicle-specific fascia and harness components required to install a compatible 9-inch trapezoid-shaped aftermarket head unit.
Wireless Apple CarPlay and Android Auto allow compatible smartphones to connect to the Pioneer head unit without requiring a USB cable, providing access to compatible navigation, music, phone calls, messages and supported applications through the large touchscreen. Wired connectivity is also supported.
Aerpro AKTO15 Toyota Yaris Installation Kit
The Aerpro AKTO15 is a vehicle-specific 9-inch installation kit designed for Toyota Yaris Sedan vehicles. The kit is developed to suit universal trapezoid-shaped aftermarket radios and provides the fascia and vehicle harness required for installation.
Aerpro AKTO15 Kit Includes
- Black fascia kit
- Vehicle harness
The vehicle-specific black fascia provides a clean integrated appearance within the Toyota Yaris dashboard when installing a compatible 9-inch trapezoid-shaped aftermarket head unit.
Toyota Yaris Factory Feature Retention
The Aerpro AKTO15 is designed as a straightforward vehicle-specific installation solution for Toyota Yaris Sedan vehicles.
Steering Wheel Controls
Steering wheel controls are not retained with this installation configuration.
Factory Reverse Camera
Factory reverse camera retention is not supported by the Aerpro AKTO15 installation configuration.
Factory AUX Input
Factory AUX input is not retained through the Aerpro AKTO15 installation configuration.
Factory USB Input
Factory USB input is not retained through the Aerpro AKTO15 installation configuration.
Factory Amplifier
The Aerpro AKTO15 is specified without factory amplifier retention.
Factory Vehicle Menu
The factory vehicle menu is not retained through the AKTO15 installation configuration.
Important Toyota Yaris Installation Information
The Aerpro AKTO15 is designed to suit universal 9-inch trapezoid-shaped aftermarket radios. It will not suit standard DIN or double-DIN sized radios.
The Aerpro AKTO15 does not support Pioneer CAN Bus features.
Feature retention is radio dependent and may vary according to the exact Toyota Yaris specification and factory equipment.
Head unit ISO harness is not included with the Aerpro AKTO15. Aerpro recommends installation with an Aerpro APP8 Head Unit Secondary ISO Harness, sold separately.
Pioneer DMH-AP6850BT 9-Inch Touchscreen
The Pioneer DMH-AP6850BT features a 9-inch WSVGA capacitive touchscreen with 1,024 x 600 resolution, providing a large and responsive interface for Apple CarPlay, Android Auto, navigation, music, phone calls and compatible applications.
The flat-screen design provides a modern appearance, while Pioneer's shortcut keys allow quick access to commonly used features and controls.
Wireless Apple CarPlay for Toyota Yaris
Connect a compatible iPhone wirelessly and access Apple CarPlay directly through the Pioneer 9-inch touchscreen.
Apple CarPlay provides access to compatible navigation, music, phone and messaging applications through the Pioneer display. Both wired and wireless Apple CarPlay are supported by the DMH-AP6850BT.
Wireless Android Auto for Toyota Yaris
Compatible Android smartphones can connect using wireless Android Auto or through a wired connection.
Android Auto provides access to compatible navigation, music, calls, messages and supported applications through the Pioneer touchscreen, making the DMH-AP6850BT an excellent Toyota Yaris Android Auto head unit upgrade.
Bluetooth 5.4 Connectivity
The Pioneer DMH-AP6850BT features Bluetooth 5.4 for compatible smartphones, providing hands-free calling and wireless audio streaming.
Bluetooth connectivity allows compatible devices to remain connected to the Pioneer head unit for convenient access to calls and music.
Camera Connectivity
The Pioneer DMH-AP6850BT features dual AHD 1.0 camera inputs, providing the ability to connect compatible aftermarket cameras to the head unit.
The Aerpro AKTO15 does not provide factory reverse camera retention, however the Pioneer head unit can support compatible aftermarket camera configurations.
Premium Pioneer Audio
The DMH-AP6850BT incorporates advanced Pioneer audio processing, making it an excellent foundation for a Toyota Yaris sound system upgrade.
- 50W x 4-channel MOSFET amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- High-pass filter
- Low-pass filter
- Subwoofer control
- 3 x RCA pre-outs
- 4V pre-out voltage
The 4V RCA pre-outs provide a strong platform for adding aftermarket amplifiers, speakers and subwoofers as part of a more comprehensive Toyota Yaris sound system upgrade.
Full HD USB Playback
The Pioneer DMH-AP6850BT supports Full HD video playback via USB and provides USB connectivity for compatible devices and media.
Pioneer DMH-AP6850BT Key Features
- 9-inch WSVGA capacitive touchscreen
- 1,024 x 600 resolution
- Wired Apple CarPlay
- Wireless Apple CarPlay
- Wired Android Auto
- Wireless Android Auto
- Bluetooth 5.4
- WebLink
- WebLink Cast
- WebLink Browser for Android
- Dual AHD 1.0 camera inputs
- Full HD USB video playback
- OEM CAN Bus support on compatible configurations
- Pioneer shortcut keys
- Ultra-shallow chassis
- 50W x 4 MOSFET amplifier
- Premium 48-bit dual-core DSP
- 3-way network mode
- Manual time alignment
- HPF and LPF
- Subwoofer control
- 3 x RCA 4V pre-outs
- AM/FM tuner
- RDS
- Best Station Memory
Aerpro AKTO15 Features
- Designed for Toyota Yaris Sedan vehicles
- Designed for universal 9-inch trapezoid-shaped radios
- Black vehicle-specific fascia
- Vehicle harness included
- Steering wheel controls not retained
- Factory reverse camera not retained
- Factory AUX not retained
- Factory USB not retained
- Factory amplifier not retained
- Factory vehicle menu not retained
Professional Toyota Yaris Head Unit Installation
Installing a modern 9-inch touchscreen into a Toyota Yaris requires the correct vehicle-specific fascia, wiring and installation components to achieve a clean and reliable result.
The Aerpro AKTO15 provides the vehicle-specific fascia and vehicle harness required to install a compatible aftermarket head unit into the Toyota Yaris Sedan.
Professional installation can help ensure the Pioneer head unit, Aerpro installation kit and vehicle wiring are correctly integrated with the vehicle.
Strathfield Car Radios can professionally install and integrate Toyota Yaris head units, Apple CarPlay stereos, Android Auto head units, reverse cameras and complete car audio upgrades.
Toyota Yaris Pioneer Stereo Upgrade
The Pioneer DMH-AP6850BT + Aerpro AKTO15 provides a modern 9-inch touchscreen stereo upgrade for Toyota Yaris Sedan vehicles.
With wireless Apple CarPlay, wireless Android Auto, Bluetooth 5.4, a 9-inch touchscreen and advanced Pioneer DSP audio processing, the DMH-AP6850BT brings modern smartphone connectivity and audio technology to the Toyota Yaris.
The Aerpro AKTO15 provides the vehicle-specific fascia and harness required to install the Pioneer head unit.
If you're searching for a Toyota Yaris head unit upgrade, Toyota Yaris Apple CarPlay, Toyota Yaris Android Auto, Yaris stereo replacement, Yaris Pioneer head unit, Yaris 9-inch stereo, Yaris radio upgrade or Yaris aftermarket head unit, this Pioneer and Aerpro combination provides a vehicle-specific upgrade solution.
Product Compatibility
- Vehicle: Toyota Yaris Sedan
- Vehicle Reference: Toyota Yaris (Vitz) 2005-2011
- Head Unit: Pioneer DMH-AP6850BT
- Aerpro Installation Kit: AKTO15
- Screen: 9-inch WSVGA capacitive touchscreen
- Apple CarPlay: Wired / Wireless
- Android Auto: Wired / Wireless
- Bluetooth: Version 5.4
- Steering Wheel Controls: Not retained
- Factory Reverse Camera: Not retained
- Factory AUX: Not retained
- Factory USB: Not retained
- Factory Amplifier: Not retained
- Factory Vehicle Menu: Not retained
Compatibility and factory feature retention can vary according to vehicle specification and factory equipment. Please confirm compatibility before purchase.
