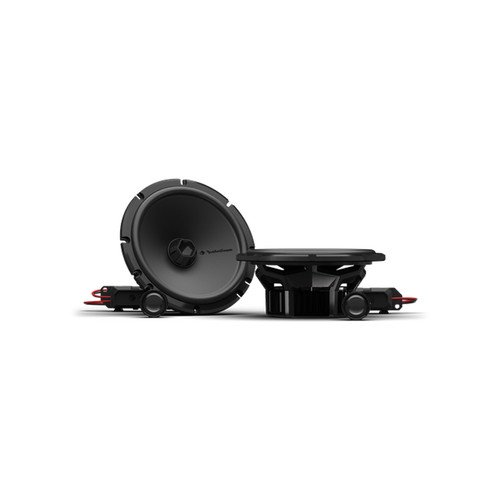

Rockford Fosgate Punch P2 6.5" 2-Way Convertible Speakers (P2V265)

Rockford Fosgate Punch P2 6.5" 2-Way Convertible Speakers (P2V265)

The Punch P2 is a 6.5" speaker that you can install as a coaxial or split into a component set, so you can decide on the day how you want the tweeters mounted. It suits the standard 6.5" door locations in most vehicles, and it comes with the cups, crossovers and wiring for either setup.

Key features:

• Convertible design: leave the tweeter on the woofer for a coaxial install, or lock it into a mounting cup and place it higher in the door, dash or pillar for a component install
• Interchangeable Locking Mechanism (I.L.M.) lets you lock and unlock the tweeter from its wired mounting cup, and a tweeter removal tool is included
• 3/4" inverted dome tweeter, with a 9kHz high-pass crossover for clean high frequencies
• VAST 2.0™ cone technology provides 25% more cone area for deeper bass and higher output
• 75W RMS / 150W peak power handling at 4Ω, with a frequency response from 49Hz to 25kHz
• Reinforced polymer basket, Santoprene™ surround and Nomex® spider for durability at high output
• Removable motor cover helps with tight mounting depths
• External crossover offers a 0dB or -3dB tweeter attenuation setting, so you can tame the highs to suit the cabin

Who it’s for:
Anyone replacing factory 6.5" door speakers who wants the option of a component-style setup without buying a separate set. It also suits installers who want one speaker that covers both setups and don’t know the final tweeter position until the door trim is off.

Fitment & installation notes:

• Cutout diameter: 5.42" (137.6mm)
• Mounting depth with motor cover: 2.5" (63.5mm)
• Minimum mounting depth with motor cover removed: 2.26" (57.3mm)
• Front side clearance: 0.43" (11mm)
• Flush-mount and surface-mount tweeter cups both included
• Four 18" crossover wiring extensions included for placing the crossovers away from the speaker
• No grille or trim ring included, so check whether your install location needs one
• Cutout template included for marking the mounting hole accurately

Specifications:

• Nominal impedance: 4Ω
• Power handling: 75W RMS / 150W peak
• Frequency response: 49Hz–25kHz
• Sensitivity: 88dB (1W/1M) / 91dB (2.83V/1M)
• Voice coil diameter: 1.25" (32.5mm)
• Tweeter crossover, internal: high-pass at 9kHz, 6dB/octave
• Tweeter crossover, external: high-pass at 9kHz, 12dB/octave, with 0dB or -3dB attenuation
• Fs: 65Hz

In the box & warranty:

• 2 x 6.5" 4Ω speakers and 2 x 3/4" 4Ω tweeters
• 2 x tweeter passive crossover networks
• 2 x flush-mount tweeter cups and 2 x surface-mount tweeter cups
• 2 x woofer phase plugs
• Tweeter removal tool
• Cutout template
• Mounting screws: 8 x #8 x 32mm (speaker), 4 x #4 x 16mm (tweeter), 4 x #8 x 20mm (crossover)
• 4 x 18" crossover wiring extensions and 2 x 18 AWG red/black speaker wire (205mm)
• 18 AWG female crimp spade connectors (3 x negative .187", 3 x positive .250"), 4 x crimp butt connectors and 6 x zip ties
